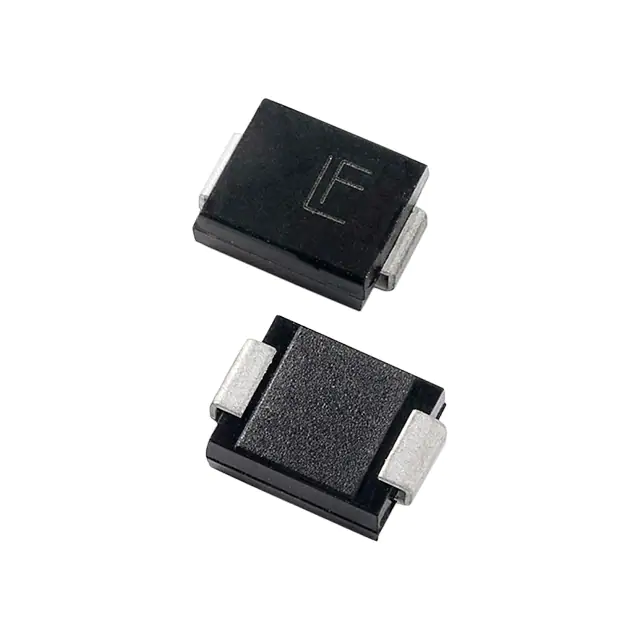

| Part Number | TPSMC75A | TPSMC75CA | TPSMD75A |
|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active |
| Type | Zener | Zener | Zener |
| Unidirectional Channels | 1 | - | 1 |
| Bidirectional Channels | - | 1 | - |
| Voltage - Reverse Standoff (Typ) | 64.1V | 64.1V | 75V |
| Voltage - Breakdown (Min) | 71.3V | 71.3V | 83.3V |
| Voltage - Clamping (Max) @ Ipp | 103V | 103V | 121V |
| Current - Peak Pulse (10/1000µs) | 14.8A | 14.8A | 24.8A |
| Power - Peak Pulse | 1500W (1.5kW) | 1500W (1.5kW) | 3000W (3kW) |
| Power Line Protection | No | No | No |
| Applications | Automotive | Automotive | Automotive |
| Capacitance @ Frequency | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC |
| Supplier Device Package | DO-214AB (SMCJ) | DO-214AB (SMCJ) | DO-214AB (SMCJ) |
