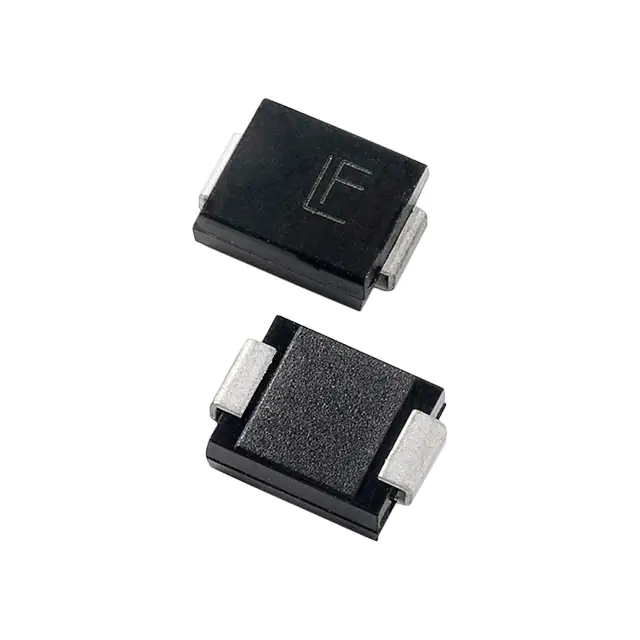

| Part Number | TPSMC30A | TPSMC30CA | TPSMC39A | TPSMC36A | TPSMC33A | TPSMC20A |
|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | - | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | 1 | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 25.6V | 25.6V | 33.3V | 30.8V | 28.2V | 17.1V |
| Voltage - Breakdown (Min) | 28.5V | 28.5V | 37.1V | 34.2V | 31.4V | 19V |
| Voltage - Clamping (Max) @ Ipp | 41.4V | 41.4V | 53.9V | 49.9V | 45.7V | 27.7V |
| Current - Peak Pulse (10/1000µs) | 36.7A | 36.7A | 28.2A | 30.5A | 33.3A | 54.9A |
| Power - Peak Pulse | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) |
| Power Line Protection | No | No | No | No | No | No |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Capacitance @ Frequency | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC |
| Supplier Device Package | DO-214AB (SMCJ) | DO-214AB (SMCJ) | DO-214AB (SMCJ) | DO-214AB (SMCJ) | DO-214AB (SMCJ) | DO-214AB (SMCJ) |
