Please send RFQ , we will respond immediately.

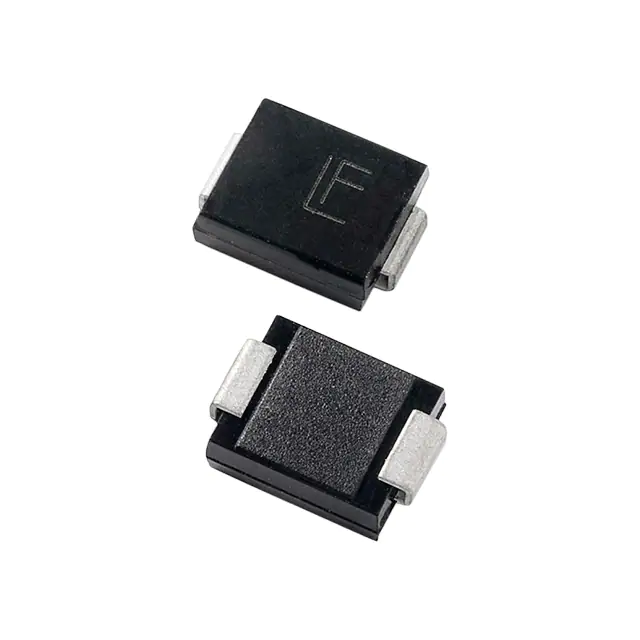

| Part Number | TPSMC15A | TPSMC18A | TPSMC16A | TPSMC15CA | TPSMC12A | TPSMC13A | TPSMC150A |
|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | - | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | 1 | - | - | - |
| Voltage - Reverse Standoff (Typ) | 12.8V | 15.3V | 13.6V | 12.8V | 10.2V | 11.1V | 128.25V |
| Voltage - Breakdown (Min) | 14.3V | 17.1V | 15.2V | 14.3V | 11.4V | 12.4V | 142.5V |
| Voltage - Clamping (Max) @ Ipp | 21.2V | 25.2V | 22.5V | 21.2V | 16.7V | 18.2V | 207V |
| Current - Peak Pulse (10/1000µs) | 71.7A | 60.3A | 67.6A | 71.7A | 91A | 83.5A | 7.3A |
| Power - Peak Pulse | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) |
| Power Line Protection | No | No | No | No | No | No | No |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive, Telecom |
| Capacitance @ Frequency | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC | DO-214AB, SMC |
| Supplier Device Package | DO-214AB (SMCJ) | DO-214AB (SMCJ) | DO-214AB (SMCJ) | DO-214AB (SMCJ) | DO-214AB (SMCJ) | DO-214AB (SMCJ) | SMC |
