| Part Number | TPSMB20A | TPSMB20CA | TPSMB220A | TPSMB210A | TPSMB24A | TPSMB30A | TPSMB22A | TPSMB27A | TPSMB250A | TPSMB120A | TPSMB200A |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | - | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | 1 | - | - | - | - | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 17.1V | 17.1V | 185V | 179.6V | 20.5V | 25.6V | 18.8V | 23.1V | 214V | 102V | 171V |
| Voltage - Breakdown (Min) | 19V | 19V | 209V | 199.5V | 22.8V | 28.5V | 20.9V | 25.7V | 237V | 114V | 190V |
| Voltage - Clamping (Max) @ Ipp | 27.7V | 27.7V | 328V | 288V | 33.2V | 41.4V | 30.6V | 37.5V | 344V | 165V | 274V |
| Current - Peak Pulse (10/1000µs) | 22A | 22A | 1.9A | 2.1A | 18.4A | 14.7A | 19.9A | 16.3A | 1.8A | 3.7A | 2.2A |
| Power - Peak Pulse | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W |
| Power Line Protection | No | No | No | No | No | No | No | No | No | No | No |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Capacitance @ Frequency | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

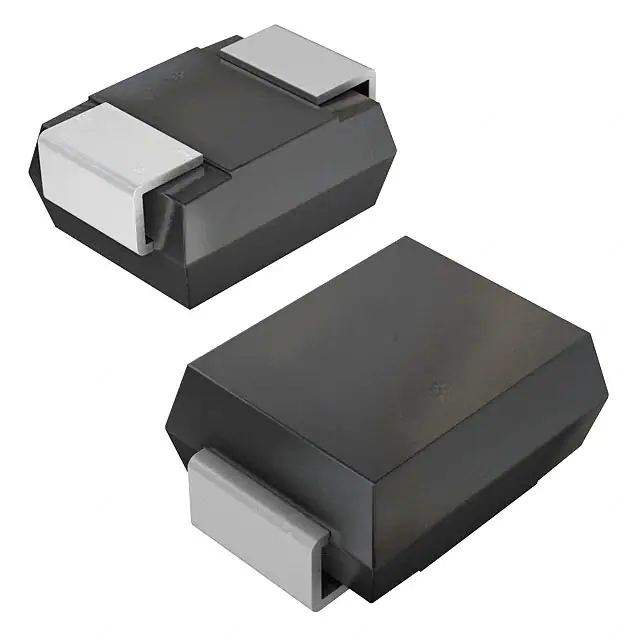

| Package / Case | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB |
| Supplier Device Package | DO-214AA (SMBJ) | DO-214AA (SMBJ) | DO-214AA (SMBJ) | SMB (DO-214AA) | DO-214AA (SMBJ) | DO-214AA (SMBJ) | DO-214AA (SMBJ) | DO-214AA (SMBJ) | DO-214AA (SMBJ) | DO-214AA (SMBJ) | DO-214AA (SMBJ) |
