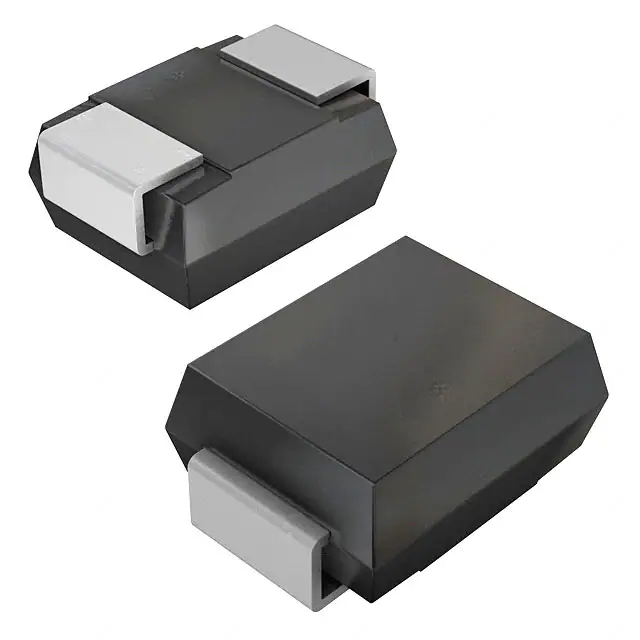

| Part Number | TPSMB12A-VR | TPSMB18A-VR | TPSMB13A-VR | TPSMB16A-VR | TPSMB15A-VR | TPSMB12CA-VR | TPSMB14A-VR | TPSMB17A-VR | TPSMB22A-VR | TPSMB10A-VR | TPSMB11A-VR |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 | 1 | - | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - | - | 1 | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 12V | 18V | 13V | 16V | 15V | 12V | 14V | 17V | 22V | 10V | 11V |
| Voltage - Breakdown (Min) | 13.3V | 20V | 14.4V | 17.8V | 16.7V | 13.3V | 15.6V | 18.9V | 24.4V | 11.1V | 12.2V |
| Voltage - Clamping (Max) @ Ipp | 19.9V | 29.2V | 21.5V | 26V | 24.4V | 19.9V | 23.2V | 27.6V | 35.5V | 17V | 18.2V |
| Current - Peak Pulse (10/1000µs) | 30.2A | 20.6A | 28A | 23.1A | 24.6A | 30.2A | 25.9A | 21.8A | 16.9A | 35.3A | 33A |
| Power - Peak Pulse | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W |
| Power Line Protection | No | No | No | No | No | No | No | No | No | No | No |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Capacitance @ Frequency | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB |
| Supplier Device Package | DO-214AA (SMBJ) | DO-214AA (SMBJ) | DO-214AA (SMBJ) | DO-214AA (SMBJ) | DO-214AA (SMBJ) | DO-214AA (SMBJ) | DO-214AA (SMBJ) | DO-214AA (SMBJ) | DO-214AA (SMBJ) | DO-214AA (SMBJ) | DO-214AA (SMBJ) |
