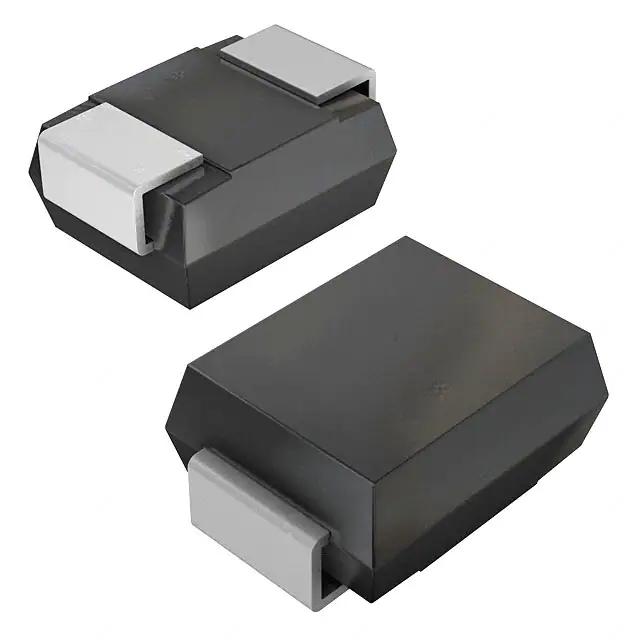

| Part Number | TPSMB12A | TPSMB13A | TPSMB18A | TPSMB15A | TPSMB12CA | TPSMB16A | TPSMB22A | TPSMB10A | TPSMB11A | TPSMB120A |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 | - | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - | 1 | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 10.2V | 11.1V | 15.3V | 12.8V | 10.2V | 13.6V | 18.8V | - | - | 102V |
| Voltage - Breakdown (Min) | - | 12.4V | 17.1V | 14.3V | - | 15.2V | 20.9V | - | - | 114V |
| Voltage - Clamping (Max) @ Ipp | 16.7V | 18.2V | 25.5V | 21.2V | 16.7V | 22.5V | 30.6V | - | - | 165V |
| Current - Peak Pulse (10/1000µs) | - | 33.5A | 24.2A | 28.8A | - | 27.1A | 19.9A | - | - | 3.7A |
| Power - Peak Pulse | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W |
| Power Line Protection | No | No | No | No | No | No | No | No | No | No |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Capacitance @ Frequency | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 175°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB |
| Supplier Device Package | DO-214AA (SMBJ) | DO-214AA (SMBJ) | DO-214AA (SMBJ) | DO-214AA (SMBJ) | DO-214AA (SMBJ) | DO-214AA (SMBJ) | DO-214AA (SMBJ) | DO-214AA (SMBJ) | DO-214AA (SMBJ) | DO-214AA (SMBJ) |
