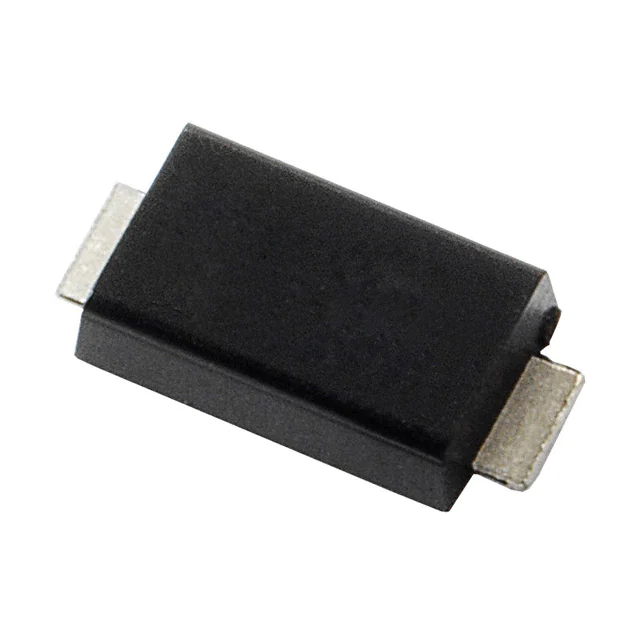

| Part Number | TPSMA6L85A | TPSMA6L15A | TPSMA6L45A | TPSMA6L75A | TPSMA6L8.5A |
|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 85V | 15V | 45V | 75V | 8.5V |
| Voltage - Breakdown (Min) | 94.4V | 16.7V | 50V | 83.3V | 9.44V |
| Voltage - Clamping (Max) @ Ipp | 137V | 24.4V | 72.7V | 121V | 14.4V |
| Current - Peak Pulse (10/1000µs) | 4.4A | 24.6A | 8.3A | 5A | 41.7A |
| Power - Peak Pulse | 600W | 600W | 600W | 600W | 600W |
| Power Line Protection | No | No | No | No | No |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive |
| Capacitance @ Frequency | - | - | - | - | - |
| Operating Temperature | -50°C ~ 150°C (TJ) | -50°C ~ 150°C (TJ) | -50°C ~ 150°C (TJ) | -50°C ~ 150°C (TJ) | -50°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads |
| Supplier Device Package | DO-221AC | DO-221AC | DO-221AC | DO-221AC | DO-221AC |
