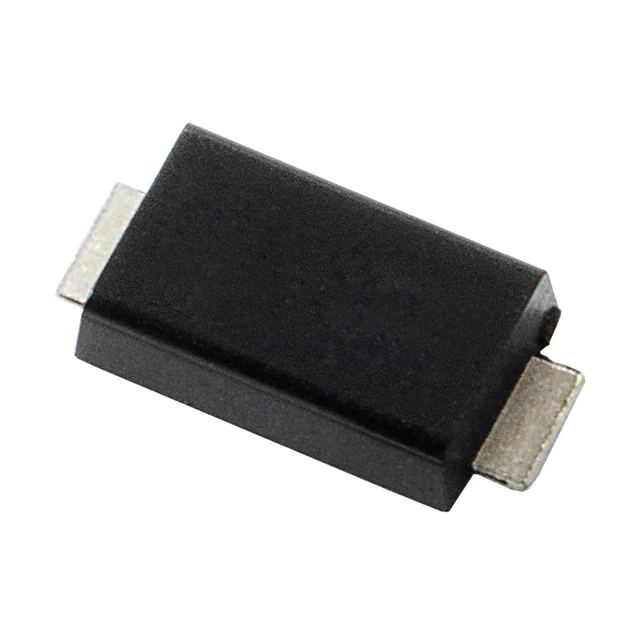

| Part Number | TPSMA6L78A | TPSMA6L18A | TPSMA6L28A | TPSMA6L48A | TPSMA6L58A | TPSMA6L70A | TPSMA6L75A |
|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 78V | 18V | 28V | 48V | 58V | 70V | 75V |
| Voltage - Breakdown (Min) | 86.7V | 20V | 31.1V | 53.3V | 64.4V | 77.8V | 83.3V |
| Voltage - Clamping (Max) @ Ipp | 126V | 29.2V | 45.4V | 77.4V | 93.6V | 113V | 121V |
| Current - Peak Pulse (10/1000µs) | 4.8A | 20.6A | 13.3A | 7.8A | 6.5A | 5.3A | 5A |
| Power - Peak Pulse | 600W | 600W | 600W | 600W | 600W | 600W | 600W |
| Power Line Protection | No | No | No | No | No | No | No |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Capacitance @ Frequency | - | - | - | - | - | - | - |
| Operating Temperature | -50°C ~ 150°C (TJ) | -50°C ~ 150°C (TJ) | -50°C ~ 150°C (TJ) | -50°C ~ 150°C (TJ) | -50°C ~ 150°C (TJ) | -50°C ~ 150°C (TJ) | -50°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads |
| Supplier Device Package | DO-221AC | DO-221AC | DO-221AC | DO-221AC | DO-221AC | DO-221AC | DO-221AC |
