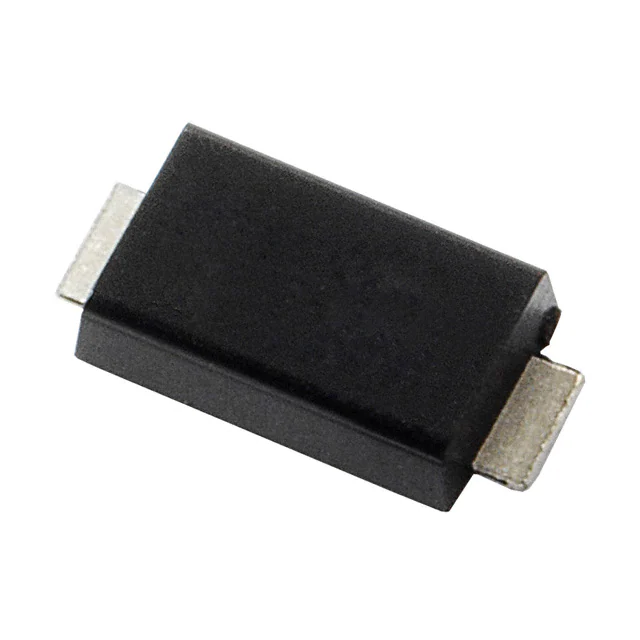

| Part Number | TPSMA6L54A | TPSMA6L64A | TPSMA6L58A | TPSMA6L14A | TPSMA6L24A | TPSMA6L51A |
|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 54V | 64V | 58V | 14V | 24V | 51V |
| Voltage - Breakdown (Min) | 60V | 71.1V | 64.4V | 15.6V | 26.7V | 56.7V |
| Voltage - Clamping (Max) @ Ipp | 87.1V | 103V | 93.6V | 23.2V | 38.9V | 82.4V |
| Current - Peak Pulse (10/1000µs) | 6.9A | 5.9A | 6.5A | 25.9A | 15.5A | 7.3A |
| Power - Peak Pulse | 600W | 600W | 600W | 600W | 600W | 600W |
| Power Line Protection | No | No | No | No | No | No |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Capacitance @ Frequency | - | - | - | - | - | - |
| Operating Temperature | -50°C ~ 150°C (TJ) | -50°C ~ 150°C (TJ) | -50°C ~ 150°C (TJ) | -50°C ~ 150°C (TJ) | -50°C ~ 150°C (TJ) | -50°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads |
| Supplier Device Package | DO-221AC | DO-221AC | DO-221AC | DO-221AC | DO-221AC | DO-221AC |
