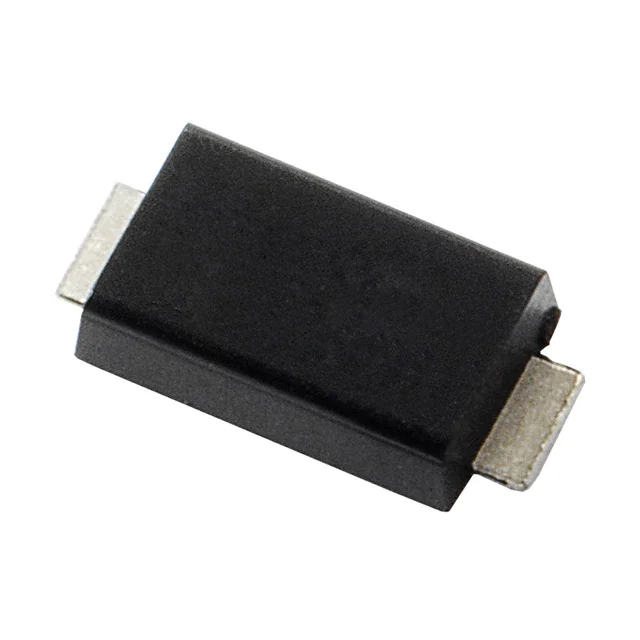

| Part Number | TPSMA6L5.0A | TPSMA6L9.0A | TPSMA6L6.0A | TPSMA6L7.0A | TPSMA6L8.0A |
|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 5V | 9V | 6V | 7V | 8V |
| Voltage - Breakdown (Min) | 6.4V | 10V | 6.67V | 7.78V | 8.89V |
| Voltage - Clamping (Max) @ Ipp | 9.2V | 15.4V | 10.3V | 12V | 13.6V |
| Current - Peak Pulse (10/1000µs) | 65.3A | 39A | 58.3A | 50A | 44.2A |
| Power - Peak Pulse | 600W | 600W | 600W | 600W | 600W |
| Power Line Protection | No | No | No | No | No |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive |
| Capacitance @ Frequency | - | - | - | - | - |
| Operating Temperature | -50°C ~ 150°C (TJ) | -50°C ~ 150°C (TJ) | -50°C ~ 150°C (TJ) | -50°C ~ 150°C (TJ) | -50°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads |
| Supplier Device Package | DO-221AC | DO-221AC | DO-221AC | DO-221AC | DO-221AC |
