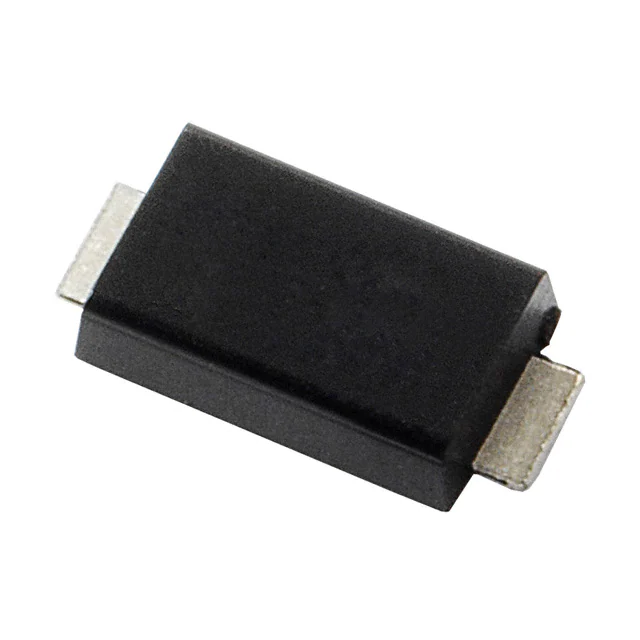

| Part Number | TPSMA6L16A | TPSMA6L36A | TPSMA6L26A | TPSMA6L18A | TPSMA6L17A | TPSMA6L10A | TPSMA6L11A | TPSMA6L12A | TPSMA6L13A | TPSMA6L14A | TPSMA6L15A |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - | - | - | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 16V | 36V | 26V | 18V | 17V | 10V | 11V | 12V | 13V | 14V | 15V |
| Voltage - Breakdown (Min) | 17.8V | 40V | 28.9V | 20V | 18.9V | 11.1V | 12.2V | 13.3V | 14.4V | 15.6V | 16.7V |
| Voltage - Clamping (Max) @ Ipp | 26V | 58.1V | 42.1V | 29.2V | 27.6V | 17V | 18.2V | 19.9V | 21.5V | 23.2V | 24.4V |
| Current - Peak Pulse (10/1000µs) | 23.1A | 10.4A | 14.3A | 20.6A | 21.8A | 35.3A | 33A | 30.2A | 28A | 25.9A | 24.6A |
| Power - Peak Pulse | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W |
| Power Line Protection | No | No | No | No | No | No | No | No | No | No | No |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Capacitance @ Frequency | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | -50°C ~ 150°C (TJ) | -50°C ~ 150°C (TJ) | -50°C ~ 150°C (TJ) | -50°C ~ 150°C (TJ) | -50°C ~ 150°C (TJ) | -50°C ~ 150°C (TJ) | -50°C ~ 150°C (TJ) | -50°C ~ 150°C (TJ) | -50°C ~ 150°C (TJ) | -50°C ~ 150°C (TJ) | -50°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads | DO-221AC, SMA Flat Leads |
| Supplier Device Package | DO-221AC | DO-221AC | DO-221AC | DO-221AC | DO-221AC | DO-221AC | DO-221AC | DO-221AC | DO-221AC | DO-221AC | DO-221AC |
