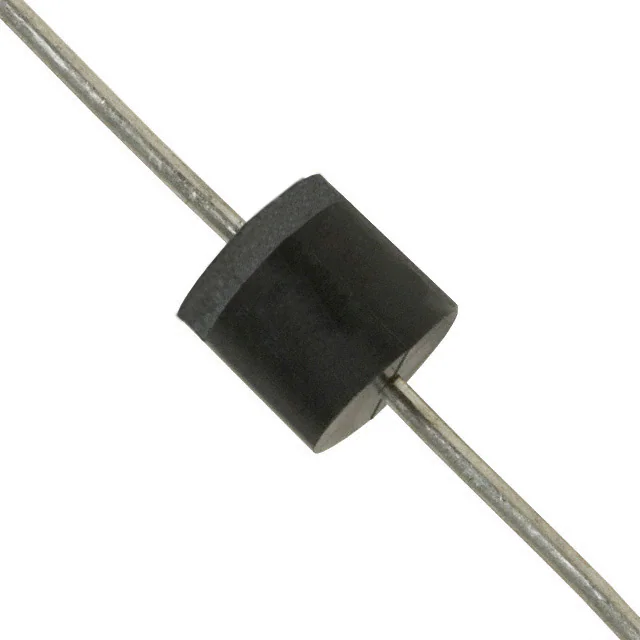

| Part Number | TP5KP60A | TP5KP60CA | TP5KP20A | TP5KP30A | TP5KP40A |
|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | - | 1 | 1 | 1 |
| Bidirectional Channels | - | 1 | - | - | - |
| Voltage - Reverse Standoff (Typ) | 60V | 60V | 20V | 30V | 40V |
| Voltage - Breakdown (Min) | 66.7V | 66.7V | 22.2V | 33.3V | 44.4V |
| Voltage - Clamping (Max) @ Ipp | 96.8V | 96.8V | 32.4V | 48.4V | 64.5V |
| Current - Peak Pulse (10/1000µs) | 52.7A | 52.7A | 157.4A | 105.4A | 79.1A |
| Power - Peak Pulse | 5000W (5kW) | 5000W (5kW) | 5000W (5kW) | 5000W (5kW) | 5000W (5kW) |
| Power Line Protection | No | No | No | No | No |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive |
| Capacitance @ Frequency | - | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | P600, Axial | P600, Axial | P600, Axial | P600, Axial | P600, Axial |
| Supplier Device Package | P600 | P600 | P600 | P600 | P600 |
