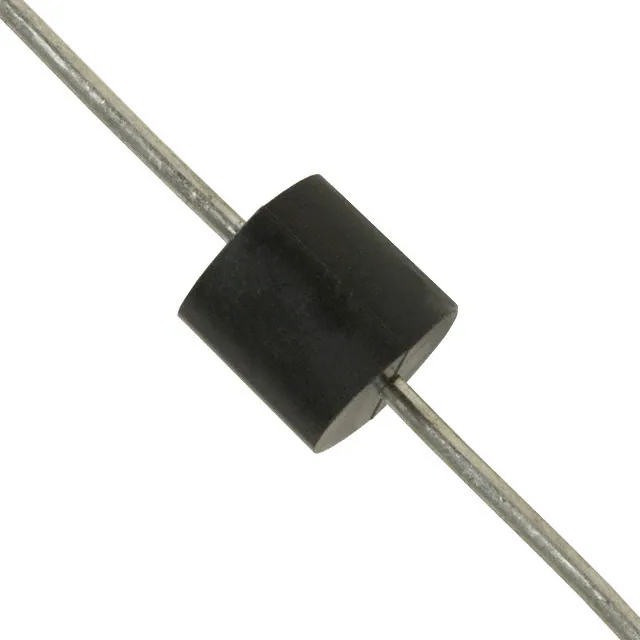

| Part Number | TP5KP26CA | TP5KP36CA | TP5KP28CA | TP5KP16CA | TP5KP20CA | TP5KP22CA | TP5KP24CA | TP5KP26A |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | - | - | - | - | 1 |
| Bidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - |
| Voltage - Reverse Standoff (Typ) | 26V | 36V | 28V | 16V | 20V | 22V | 24V | 26V |
| Voltage - Breakdown (Min) | 28.9V | 40V | 31.1V | 17.8V | 22.2V | 24V | 26.7V | 28.9V |
| Voltage - Clamping (Max) @ Ipp | 42.1V | 58.1V | 45.4V | 26V | 32.4V | 35.5V | 38.9V | 42.1V |
| Current - Peak Pulse (10/1000µs) | 121.1A | 87.8A | 112.3A | 196.2A | 157.4A | 143.7A | 131.1A | 121.1A |
| Power - Peak Pulse | 5000W (5kW) | 5000W (5kW) | 5000W (5kW) | 5000W (5kW) | 5000W (5kW) | 5000W (5kW) | 5000W (5kW) | 5000W (5kW) |
| Power Line Protection | No | No | No | No | No | No | No | No |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Capacitance @ Frequency | - | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | P600, Axial | P600, Axial | P600, Axial | P600, Axial | P600, Axial | P600, Axial | P600, Axial | P600, Axial |
| Supplier Device Package | P600 | P600 | P600 | P600 | P600 | P600 | P600 | P600 |
