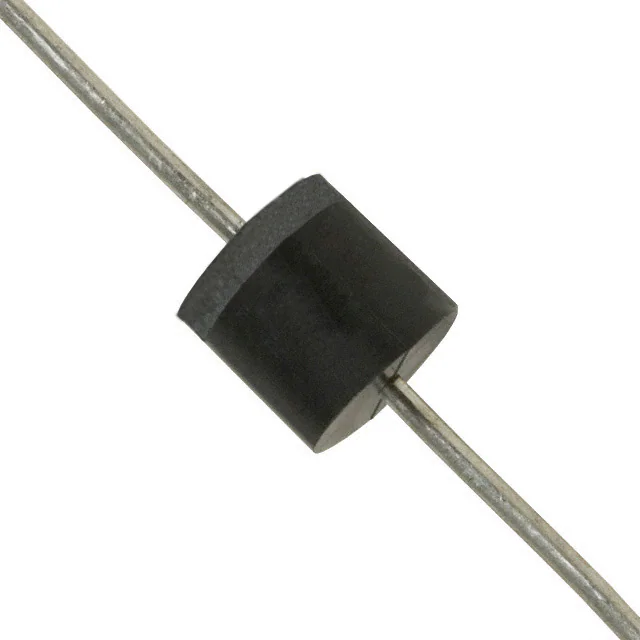

| Part Number | TP5KP22A | TP5KP26A | TP5KP28A | TP5KP22CA | TP5KP24A | TP5KP12A | TP5KP20A |
|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | - | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | 1 | - | - | - |
| Voltage - Reverse Standoff (Typ) | 22V | 26V | 28V | 22V | 24V | 12V | 20V |
| Voltage - Breakdown (Min) | 24V | 28.9V | 31.1V | 24V | 26.7V | 13.3V | 22.2V |
| Voltage - Clamping (Max) @ Ipp | 35.5V | 42.1V | 45.4V | 35.5V | 38.9V | 19.9V | 32.4V |
| Current - Peak Pulse (10/1000µs) | 143.7A | 121.1A | 112.3A | 143.7A | 131.1A | 256.3A | 157.4A |
| Power - Peak Pulse | 5000W (5kW) | 5000W (5kW) | 5000W (5kW) | 5000W (5kW) | 5000W (5kW) | 5000W (5kW) | 5000W (5kW) |
| Power Line Protection | No | No | No | No | No | No | No |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Capacitance @ Frequency | - | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | P600, Axial | P600, Axial | P600, Axial | P600, Axial | P600, Axial | P600, Axial | P600, Axial |
| Supplier Device Package | P600 | P600 | P600 | P600 | P600 | P600 | P600 |
