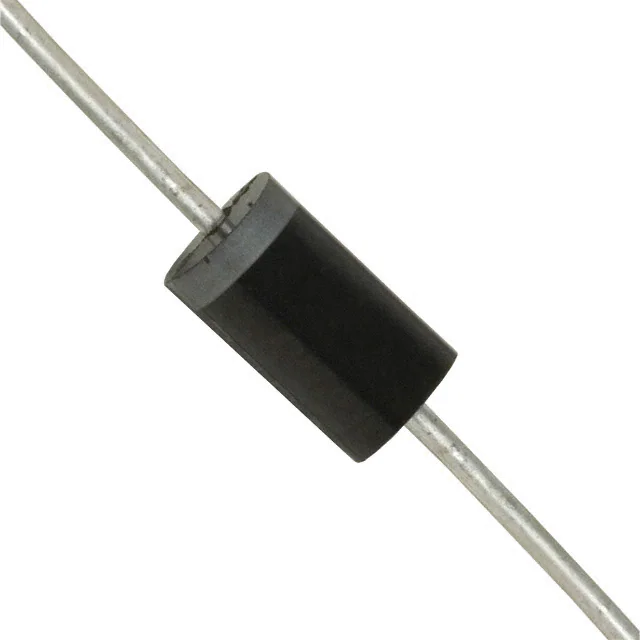

| Part Number | TP1.5KE47A | TP1.5KE47CA | TP1.5KE27A | TP1.5KE43A |
|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | - | 1 | 1 |
| Bidirectional Channels | - | 1 | - | - |
| Voltage - Reverse Standoff (Typ) | 40.2V | 40.2V | 23.1V | 36.8V |
| Voltage - Breakdown (Min) | 44.7V | 44.7V | 25.7V | 40.9V |
| Voltage - Clamping (Max) @ Ipp | 64.8V | 64.8V | 37.5V | 59.3V |
| Current - Peak Pulse (10/1000µs) | 23.5A | 23.5A | 40.5A | 25.6A |
| Power - Peak Pulse | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) |
| Power Line Protection | No | No | No | No |
| Applications | Automotive | Automotive | Automotive | Automotive |
| Capacitance @ Frequency | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-201AA, DO-27, Axial | DO-201AA, DO-27, Axial | DO-201AA, DO-27, Axial | DO-201AA, DO-27, Axial |
| Supplier Device Package | DO-201 | DO-201 | DO-201 | DO-201 |
