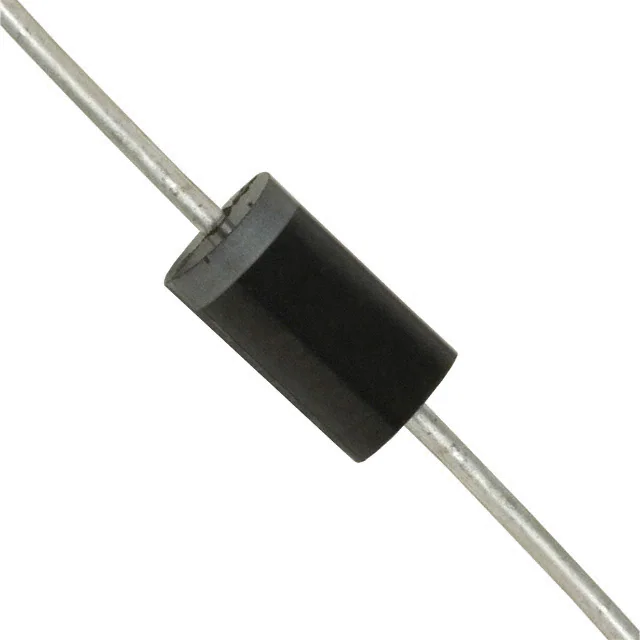

| Part Number | TP1.5KE43A | TP1.5KE43CA | TP1.5KE47A | TP1.5KE13A | TP1.5KE33A |
|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | - | 1 | 1 | 1 |
| Bidirectional Channels | - | 1 | - | - | - |
| Voltage - Reverse Standoff (Typ) | 36.8V | 36.8V | 40.2V | 11.1V | 28.2V |
| Voltage - Breakdown (Min) | 40.9V | 40.9V | 44.7V | 12.4V | 31.4V |
| Voltage - Clamping (Max) @ Ipp | 59.3V | 59.3V | 64.8V | 18.2V | 45.7V |
| Current - Peak Pulse (10/1000µs) | 25.6A | 25.6A | 23.5A | 83.5A | 33.3A |
| Power - Peak Pulse | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) |
| Power Line Protection | No | No | No | No | No |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive |
| Capacitance @ Frequency | - | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-201AA, DO-27, Axial | DO-201AA, DO-27, Axial | DO-201AA, DO-27, Axial | DO-201AA, DO-27, Axial | DO-201AA, DO-27, Axial |
| Supplier Device Package | DO-201 | DO-201 | DO-201 | DO-201 | DO-201 |
