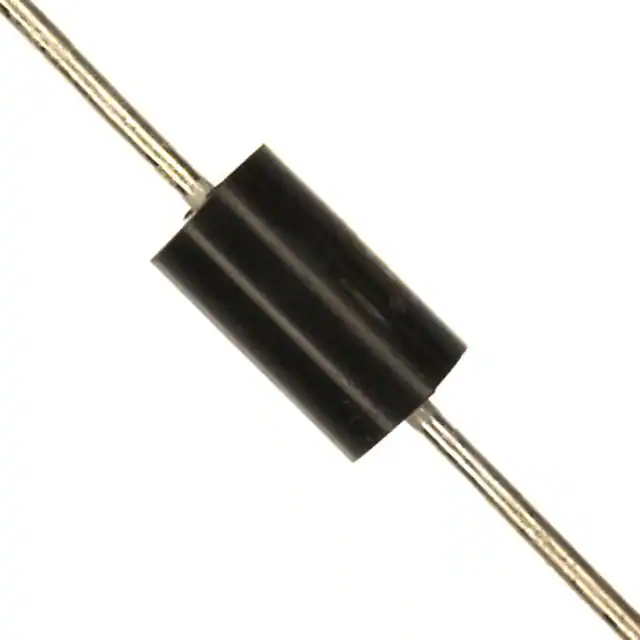

| Part Number | TP1.5KE36CA | TP1.5KE39CA | TP1.5KE16CA | TP1.5KE30CA | TP1.5KE33CA | TP1.5KE36A |
|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | - | - | 1 |
| Bidirectional Channels | 1 | 1 | 1 | 1 | 1 | - |
| Voltage - Reverse Standoff (Typ) | 30.8V | 33.3V | 13.6V | 25.6V | 28.2V | 30.8V |
| Voltage - Breakdown (Min) | 34.2V | 37.1V | 15.2V | 28.5V | 31.4V | 34.2V |
| Voltage - Clamping (Max) @ Ipp | 49.9V | 53.9V | 22.5V | 41.4V | 45.7V | 49.9V |
| Current - Peak Pulse (10/1000µs) | 30.5A | 28.2A | 67.6A | 36.7A | 33.3A | 30.5A |
| Power - Peak Pulse | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) |
| Power Line Protection | No | No | No | No | No | No |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Capacitance @ Frequency | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-201AA, DO-27, Axial | DO-201AA, DO-27, Axial | DO-201AA, DO-27, Axial | DO-201AA, DO-27, Axial | DO-201AA, DO-27, Axial | DO-201AA, DO-27, Axial |
| Supplier Device Package | DO-201 | DO-201 | DO-201 | DO-201 | DO-201 | DO-201 |
