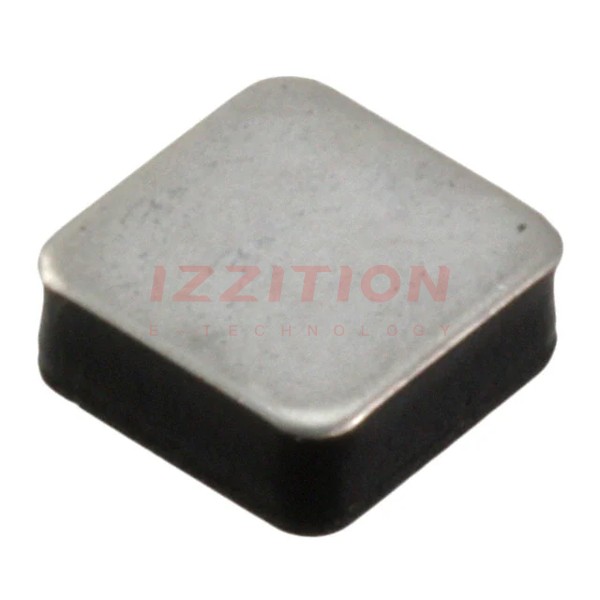

| Part Number | TCF250-180T | TCF250-180 |
|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Obsolete |
| Type | Polymeric | Polymeric |
| Voltage - Max | 60V (250V Int) | 60V (250V Int) |
| Current - Max | 3 A | 3 A |
| Current - Hold (Ih) (Max) | 180 mA | 180 mA |
| Current - Trip (It) | 380 mA | 380 mA |
| Time to Trip | 3.4 s | 3.4 s |
| Resistance - Initial (Ri) (Min) | 1.9 Ohms | 1.9 Ohms |
| Resistance - Post Trip (R1) (Max) | 4.2 Ohms | 4.2 Ohms |
| Resistance - 25°C (Typ) | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Nonstandard SMD | Nonstandard SMD |
| Size / Dimension | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.276" L x 0.276" W (7.00mm x 7.00mm) |
| Height - Seated (Max) | - | - |
| Thickness (Max) | 0.063" (1.60mm) | 0.063" (1.60mm) |
| Lead Spacing | - | - |
