| Part Number | SZP6SMB22CAT3G | SZP6SMB27CAT3G | SZP6SMB62CAT3G | SZP6SMB24CAT3G | SZP6SMB82CAT3G | SZP6SMB12CAT3G | SZP6SMB20CAT3G | SZP6SMB22AT3G |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | - | - | - | - | 1 |
| Bidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - |
| Voltage - Reverse Standoff (Typ) | 18.8V | 23.1V | 53V | 20.5V | 70.1V | 10.2V | 17.1V | 18.8V |
| Voltage - Breakdown (Min) | 20.9V | 25.7V | 58.9V | 22.8V | 77.9V | 11.4V | 19V | 20.9V |
| Voltage - Clamping (Max) @ Ipp | 30.6V | 37.5V | 85V | 33.2V | 113V | 16.7V | 27.7V | 30.6V |
| Current - Peak Pulse (10/1000µs) | 20A | 16A | 7.1A | 18A | 5.3A | 36A | 22A | 20A |
| Power - Peak Pulse | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W |
| Power Line Protection | No | No | No | No | No | No | No | No |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Capacitance @ Frequency | 450pF @ 1MHz | 370pF @ 1MHz | 170pF @ 1MHz | 415pF @ 1MHz | 130pF @ 1MHz | 800pF @ 1MHz | 490pF @ 1MHz | 835pF @ 1MHz |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

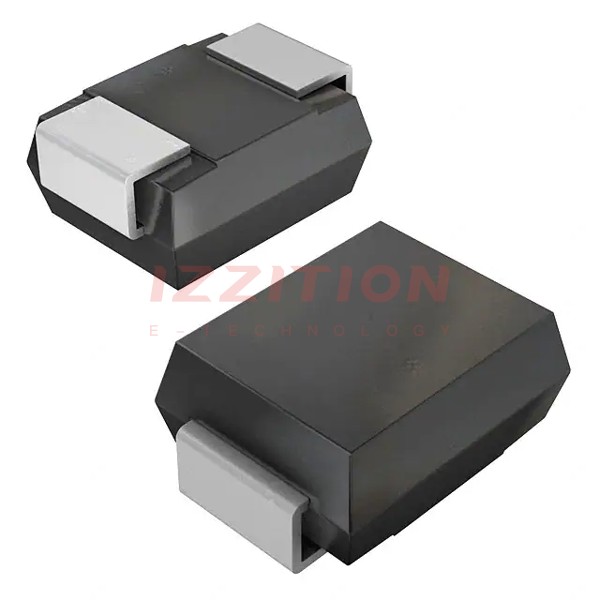

| Package / Case | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB |
| Supplier Device Package | DO-214AA (SMBJ) | SMB | SMB | SMB | SMB | SMB | DO-214AA (SMBJ) | SMB |
