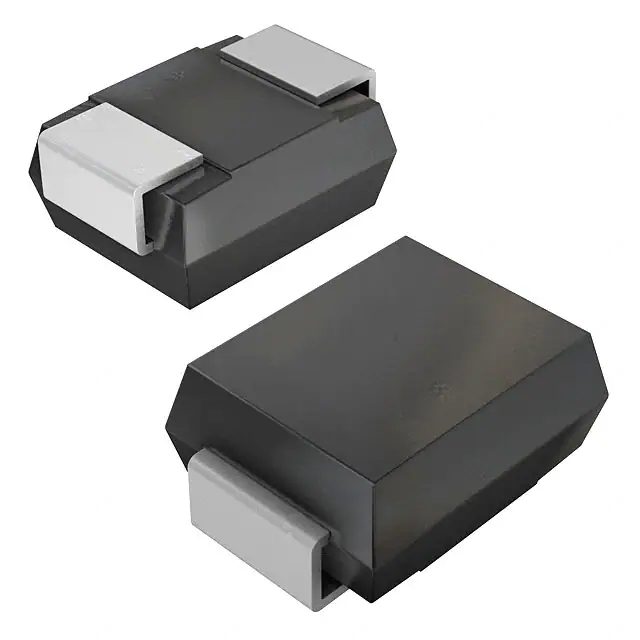

| Part Number | SZ1SMB26CAT3G | SZ1SMB28CAT3G | SZ1SMB36CAT3G | SZ1SMA26CAT3G | SZ1SMB16CAT3G | SZ1SMB20CAT3G | SZ1SMB22CAT3G | SZ1SMB24CAT3G | SZ1SMB26AT3G |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | - | - | - | - | - | 1 |
| Bidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - |
| Voltage - Reverse Standoff (Typ) | 26V | 28V | 36V | 26V | 16V | 20V | 22V | 24V | 26V |
| Voltage - Breakdown (Min) | 28.9V | 31.1V | 40V | 28.9V | 17.8V | 22.2V | 24.4V | 26.7V | 28.9V |
| Voltage - Clamping (Max) @ Ipp | 42.1V | 45.4V | 58.1V | 42.1V | 26V | 32.4V | 35.5V | 38.9V | 42.1V |
| Current - Peak Pulse (10/1000µs) | 14.2A | 13.2A | 10.3A | 9.5A | 23.1A | 18.5A | 16.9A | 15.4A | 14.2A |
| Power - Peak Pulse | 600W | 600W | 600W | 400W | 600W | 600W | 600W | 600W | 600W |
| Power Line Protection | No | No | No | No | No | No | No | No | No |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Capacitance @ Frequency | 330pF @ 1MHz | 310pF @ 1MHz | 245pF @ 1MHz | 240pF @ 1MHz | 520pF @ 1MHz | 425pF @ 1MHz | 390pF @ 1MHz | 366pF @ 1MHz | 630pF @ 1MHz |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AC, SMA | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB |
| Supplier Device Package | SMB | SMB | SMB | SMA | SMB | DO-214AA (SMBJ) | SMB | SMB | SMB |
