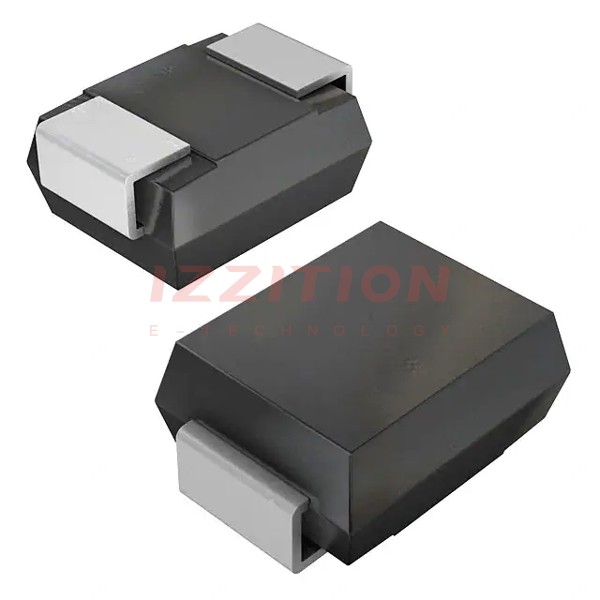

| Part Number | SZ1SMB24AT3G | SZ1SMB26AT3G | SZ1SMB28AT3G | SZ1SMB24CAT3G | SZ1SMC24AT3G | SZ1SMA24AT3G | SZ1SMB14AT3G | SZ1SMB22AT3G |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | - | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | 1 | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 24V | 26V | 28V | 24V | 24V | 24V | 14V | 22V |
| Voltage - Breakdown (Min) | 26.7V | 28.9V | 31.1V | 26.7V | 26.7V | 26.7V | 15.6V | 24.4V |
| Voltage - Clamping (Max) @ Ipp | 38.9V | 42.1V | 45.4V | 38.9V | 38.9V | 38.9V | 23.2V | 35.5V |
| Current - Peak Pulse (10/1000µs) | 15.4A | 14.2A | 13.2A | 15.4A | 38.6A | 10.3A | 25.8A | 16.9A |
| Power - Peak Pulse | 600W | 600W | 600W | 600W | 1500W (1.5kW) | 400W | 600W | 600W |
| Power Line Protection | No | No | No | No | No | No | No | No |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Capacitance @ Frequency | 675pF @ 1MHz | 630pF @ 1MHz | 590pF @ 1MHz | 366pF @ 1MHz | - | 500pF @ 1MHz | 1085pF @ 1MHz | 730pF @ 1MHz |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AB, SMC | DO-214AC, SMA | DO-214AA, SMB | DO-214AA, SMB |
| Supplier Device Package | SMB | SMB | SMB | SMB | SMC | SMA | SMB | SMB |
