Please send RFQ , we will respond immediately.

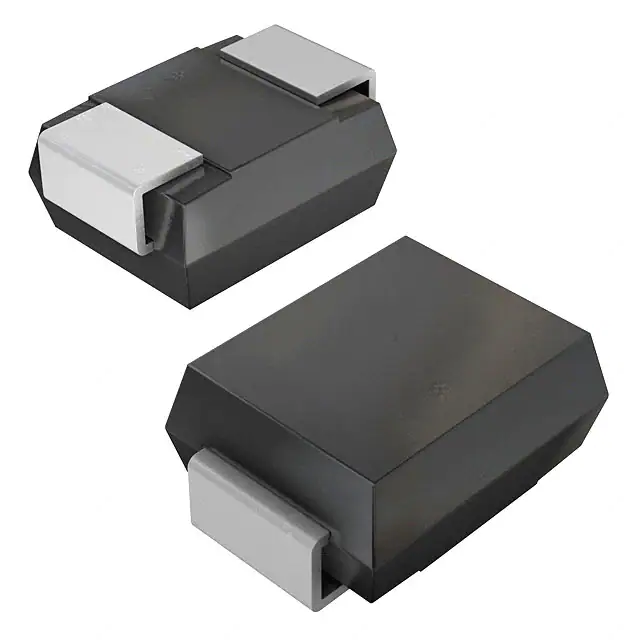

| Part Number | SZ1SMB13CAT3G | SZ1SMB33CAT3G | SZ1SMB16CAT3G | SZ1SMB17CAT3G | SZ1SMB15CAT3G | SZ1SMB43CAT3G | SZ1SMB14CAT3G | SZ1SMB18CAT3G | SZ1SMA13CAT3G | SZ1SMB10CAT3G | SZ1SMB11CAT3G | SZ1SMB12CAT3G | SZ1SMB13AT3G |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | - | - | - | - | - | - | - | - | - | 1 |
| Bidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - |
| Voltage - Reverse Standoff (Typ) | 13V | 33V | 16V | 17V | 15V | 43V | 14V | 18V | 13V | 10V | 11V | 12V | 13V |
| Voltage - Breakdown (Min) | 14.4V | 36.7V | 17.8V | 18.9V | 16.7V | 47.8V | 15.6V | 20V | 14.4V | 11.1V | 12.2V | 13.3V | 14.4V |
| Voltage - Clamping (Max) @ Ipp | 21.5V | 53.3V | 26V | 27.6V | 24.4V | 69.4V | 23.2V | 29.2V | 21.5V | 17V | 18.2V | 19.9V | 21.5V |
| Current - Peak Pulse (10/1000µs) | 27.9A | 11.3A | 23.1A | 21.7A | 24A | 8.6A | 25.8A | 20.5A | 18.6A | 35.3A | 33A | 30.2A | 27.9A |
| Power - Peak Pulse | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 400W | 600W | 600W | 600W | 600W |
| Power Line Protection | No | No | No | No | No | No | No | No | No | No | No | No | No |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Capacitance @ Frequency | 630pF @ 1MHz | 265pF @ 1MHz | 520pF @ 1MHz | 490pF @ 1MHz | 555pF @ 1MHz | 210pF @ 1MHz | 590pF @ 1MHz | 465pF @ 1MHz | 455pF @ 1MHz | 805pF @ 1MHz | 740pF @ 1MHz | 680pF @ 1MHz | 1160pF @ 1MHz |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AC, SMA | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB |
| Supplier Device Package | SMB | SMB | SMB | SMB | SMB | SMB | SMB | SMB | SMA | SMB | SMB | SMB | SMB |
