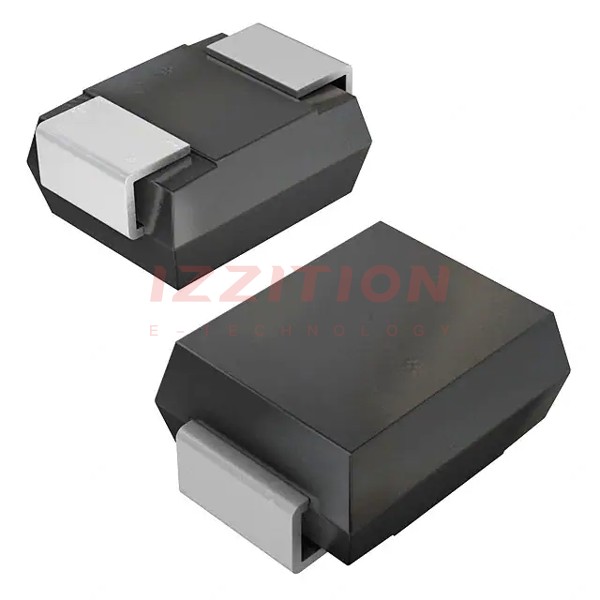

| Part Number | SZ1SMB13AT3G | SZ1SMB15AT3G | SZ1SMB43AT3G | SZ1SMB17AT3G | SZ1SMB18AT3G | SZ1SMC13AT3G | SZ1SMB16AT3G | SZ1SMB33AT3G | SZ1SMB14AT3G | SZ1SMB13CAT3G | SZ1SMA13AT3G | SZ1SMB12AT3G |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | 1 | 1 |
| Bidirectional Channels | - | - | - | - | - | - | - | - | - | 1 | - | - |
| Voltage - Reverse Standoff (Typ) | 13V | 15V | 43V | 17V | 18V | 13V | 16V | 33V | 14V | 13V | 13V | 12V |
| Voltage - Breakdown (Min) | 14.4V | 16.7V | 47.8V | 18.9V | 20V | 14.4V | 17.8V | 36.7V | 15.6V | 14.4V | 14.4V | 13.3V |
| Voltage - Clamping (Max) @ Ipp | 21.5V | 24.4V | 69.4V | 27.6V | 29.2V | 21.5V | 26V | 53.3V | 23.2V | 21.5V | 21.5V | 19.9V |
| Current - Peak Pulse (10/1000µs) | 27.9A | 24A | 8.6A | 21.7A | 20.5A | 69.7A | 23.1A | 11.3A | 25.8A | 27.9A | 18.6A | 30.2A |
| Power - Peak Pulse | 600W | 600W | 600W | 600W | 600W | 1500W (1.5kW) | 600W | 600W | 600W | 600W | 400W | 600W |
| Power Line Protection | No | No | No | No | No | No | No | No | No | No | No | No |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Capacitance @ Frequency | 1160pF @ 1MHz | 1020pF @ 1MHz | 400pF @ 1MHz | 915pF @ 1MHz | 870pF @ 1MHz | - | 965pF @ 1MHz | 510pF @ 1MHz | 1085pF @ 1MHz | 630pF @ 1MHz | 860pF @ 1MHz | 1245pF @ 1MHz |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AB, SMC | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AA, SMB | DO-214AC, SMA | DO-214AA, SMB |
| Supplier Device Package | SMB | SMB | SMB | SMB | SMB | SMC | DO-214AA (SMBJ) | SMB | SMB | SMB | SMA | SMB |
