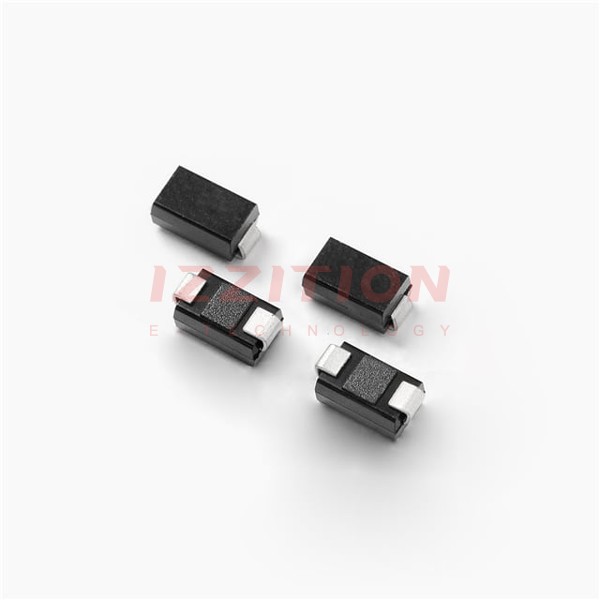

| Part Number | SZ1SMA75AT3G | SZ1SMA85AT3G | SZ1SMA78AT3G | SZ1SMA15AT3G | SZ1SMA45AT3G | SZ1SMA70AT3G |
|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 75V | 85V | 78V | 15V | 45V | 70V |
| Voltage - Breakdown (Min) | 83.3V | 94.4V | 86.7V | 16.7V | 50V | 77.8V |
| Voltage - Clamping (Max) @ Ipp | 121V | 137V | 126V | 24.4V | 72.2V | 113V |
| Current - Peak Pulse (10/1000µs) | 3.3A | 2.9A | 3.2A | 16.4A | 5.5A | 3.5A |
| Power - Peak Pulse | 400W | 400W | 400W | 400W | 400W | 400W |
| Power Line Protection | No | No | No | No | No | No |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Capacitance @ Frequency | 180pF @ 1MHz | 173pF @ 1MHz | 178pF @ 1MHz | 758pF @ 1MHz | 280pF @ 1MHz | 190pF @ 1MHz |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-214AC, SMA | DO-214AC, SMA | DO-214AC, SMA | DO-214AC, SMA | DO-214AC, SMA | DO-214AC, SMA |
| Supplier Device Package | DO-214AC (SMA) | DO-214AC (SMA) | DO-214AC (SMA) | SMA | SMA | SMA |
