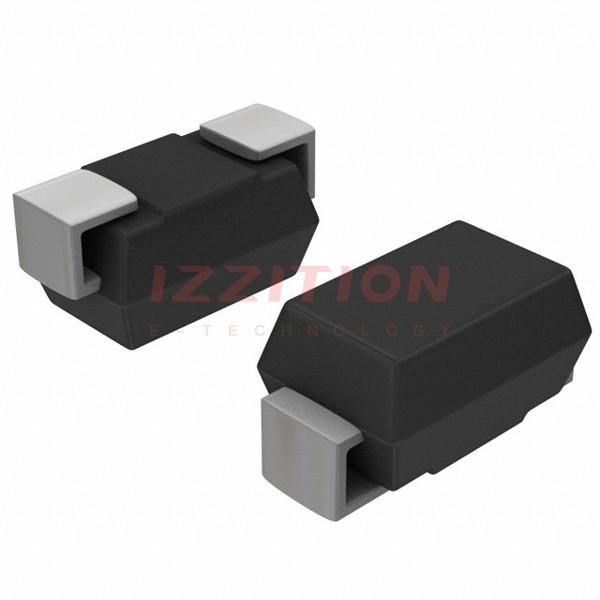

| Part Number | SZ1SMA30CAT3G | SZ1SMB30CAT3G | SZ1SMA33CAT3G | SZ1SMA36CAT3G | SZ1SMA40CAT3G | SZ1SMA70CAT3G | SZ1SMA60CAT3G | SZ1SMA10CAT3G | SZ1SMA20CAT3G | SZ1SMA30AT3G |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | - | - | - | - | - | - | 1 |
| Bidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - |
| Voltage - Reverse Standoff (Typ) | 30V | 30V | 33V | 36V | 40V | 70V | 60V | 10V | 20V | 30V |
| Voltage - Breakdown (Min) | 33.3V | 33.3V | 36.7V | 40V | 44.4V | 77.8V | 66.7V | 11.1V | 22.2V | 33.3V |
| Voltage - Clamping (Max) @ Ipp | 48.4V | 48.4V | 53.3V | 58.1V | 64.5V | 113V | 96.8V | 17V | 32.4V | 48.4V |
| Current - Peak Pulse (10/1000µs) | 8.3A | 12.4A | 7.5A | 6.9A | 6.2A | 3.5A | 4.1A | 23.5A | 12.3A | 8.3A |
| Power - Peak Pulse | 400W | 600W | 400W | 400W | 400W | 400W | 400W | 400W | 400W | 400W |
| Power Line Protection | No | No | No | No | No | No | No | No | No | No |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Capacitance @ Frequency | 210pF @ 1MHz | 290pF @ 1MHz | 190pF @ 1MHz | 175pF @ 1MHz | 160pF @ 1MHz | 95pF @ 1MHz | - | - | - | 405pF @ 1MHz |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-214AC, SMA | DO-214AA, SMB | DO-214AC, SMA | DO-214AC, SMA | DO-214AC, SMA | DO-214AC, SMA | DO-214AC, SMA | DO-214AC, SMA | DO-214AC, SMA | DO-214AC, SMA |
| Supplier Device Package | DO-214AC (SMA) | SMB | SMA | SMA | SMA | SMA | SMA | SMA | SMA | SMA |
