Please send RFQ , we will respond immediately.

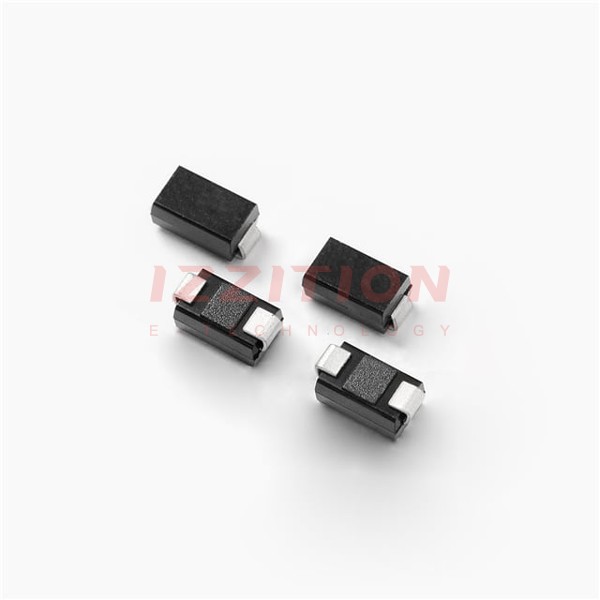

| Part Number | SZ1SMA100AT3G | SZ1SMA110AT3G | SZ1SMA170AT3G | SZ1SMA10AT3G | SZ1SMA130AT3G | SZ1SMA160AT3G | SZ1SMA120AT3G | SZ1SMA150AT3G | SZ1SMA10CAT3G | SZ1SMB100AT3G |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | 1 |
| Bidirectional Channels | - | - | - | - | - | - | - | - | 1 | - |
| Voltage - Reverse Standoff (Typ) | 100V | 110V | 170V | 10V | 130V | 160V | 120V | 150V | 10V | 100V |
| Voltage - Breakdown (Min) | 111V | 122V | 189V | 11.1V | 144V | 178V | 133V | 167V | 11.1V | 111V |
| Voltage - Clamping (Max) @ Ipp | 162V | 177V | 275V | 17V | 209V | 259V | 193V | 243V | 17V | 162V |
| Current - Peak Pulse (10/1000µs) | 2.5A | 2.3A | 1.5A | 23.5A | 1.9A | 1.6A | 2.1A | 1.7A | 23.5A | 3.7A |
| Power - Peak Pulse | 400W | 400W | 400W | 400W | 400W | 400W | 400W | 400W | 400W | 600W |
| Power Line Protection | No | No | No | No | No | No | No | No | No | No |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Capacitance @ Frequency | 162pF @ 1MHz | 155pF @ 1MHz | 112pF @ 1MHz | 1090pF @ 1MHz | 142pF @ 1MHz | 119pF @ 1MHz | 148pF @ 1MHz | 127pF @ 1MHz | - | 190pF @ 1MHz |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | DO-214AC, SMA | DO-214AC, SMA | DO-214AC, SMA | DO-214AC, SMA | DO-214AC, SMA | DO-214AC, SMA | DO-214AC, SMA | DO-214AC, SMA | DO-214AC, SMA | DO-214AA, SMB |
| Supplier Device Package | DO-214AC (SMA) | DO-214AC (SMA) | DO-214AC (SMA) | SMA | DO-214AC (SMA) | DO-214AC (SMA) | DO-214AC (SMA) | DO-214AC (SMA) | SMA | SMB |
