Please send RFQ , we will respond immediately.

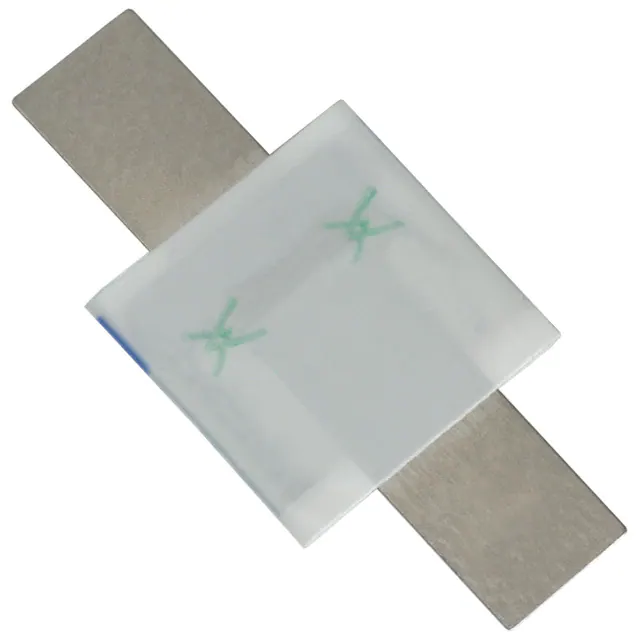

| Part Number | SRP350F | SRP350 | SRP350DF |
|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Obsolete | Active |
| Type | Polymeric | Polymeric | Polymeric |
| Voltage - Max | 30V | 30V | 30V |
| Current - Max | 100 A | 100 A | 100 A |
| Current - Hold (Ih) (Max) | 3.5 A | 3.5 A | 3.5 A |
| Current - Trip (It) | 6.3 A | 6.3 A | 6.3 A |
| Time to Trip | 3 s | 3 s | 3 s |
| Resistance - Initial (Ri) (Min) | 17 mOhms | 17 mOhms | 0.017 Ohms |
| Resistance - Post Trip (R1) (Max) | 50 mOhms | 50 mOhms | 0.031 Ohms |
| Resistance - 25°C (Typ) | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - | - |
| Mounting Type | User Defined | User Defined | Holder |
| Package / Case | Strap | Strap | Strap |
| Size / Dimension | 1.185" L x 0.522" W (30.10mm x 13.25mm) | 1.185" L x 0.522" W (30.10mm x 13.25mm) | 1.185" L x 0.522" W (30.10mm x 13.25mm) |
| Height - Seated (Max) | - | - | - |
| Thickness (Max) | 0.043" (1.10mm) | 0.043" (1.10mm) | 0.043" (1.10mm) |
| Lead Spacing | - | - | - |
