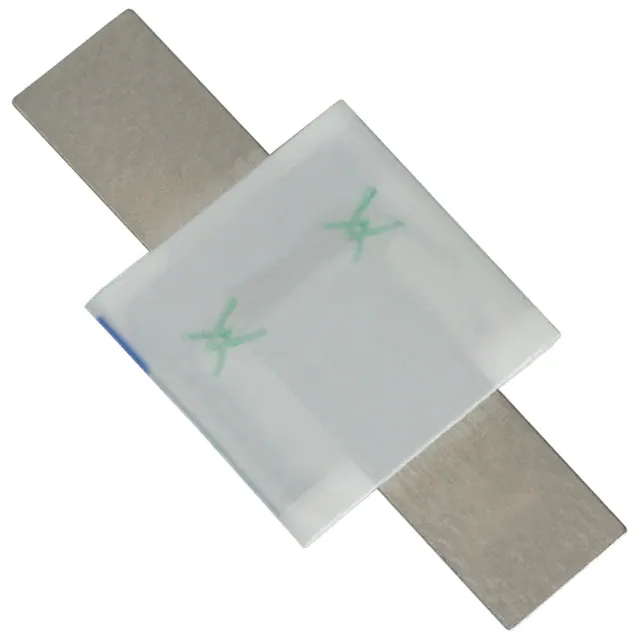

| Part Number | SRP200 | SRP200F |
|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Active |
| Type | Polymeric | Polymeric |
| Voltage - Max | 30V | 30V |
| Current - Max | 100 A | 100 A |
| Current - Hold (Ih) (Max) | 2 A | 2 A |
| Current - Trip (It) | 4.4 A | 4.4 A |
| Time to Trip | 4 s | 4 s |
| Resistance - Initial (Ri) (Min) | 30 mOhms | 30 mOhms |
| Resistance - Post Trip (R1) (Max) | 100 mOhms | 100 mOhms |
| Resistance - 25°C (Typ) | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Ratings | - | - |
| Mounting Type | User Defined | User Defined |
| Package / Case | Strap | Strap |
| Size / Dimension | 0.880" L x 0.417" W (22.35mm x 10.60mm) | 0.880" L x 0.417" W (22.35mm x 10.60mm) |
| Height - Seated (Max) | - | - |
| Thickness (Max) | 0.043" (1.10mm) | 0.043" (1.10mm) |
| Lead Spacing | - | - |
