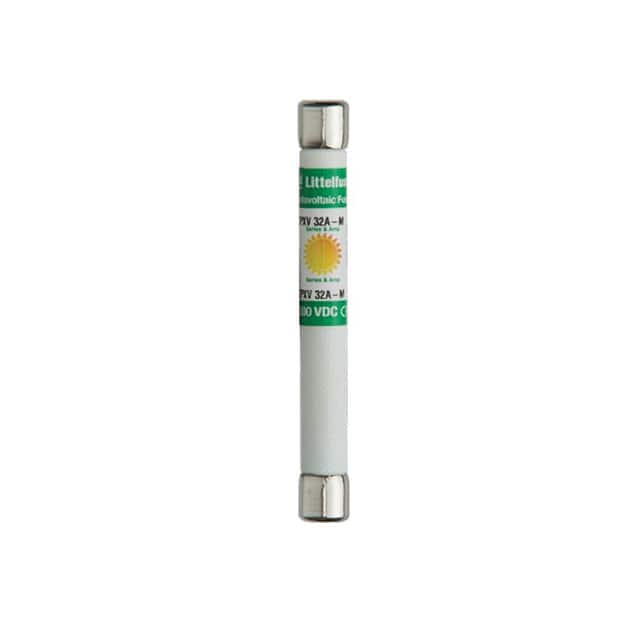

| Part Number | SPXV04.5T | SPXI04.5T | SPXV02.5T | SPXV03.5T | SPXV04.5L |
|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Mounting Type | Holder | Free Hanging (In-Line) | Holder | Holder | Holder |
| Fuse Type | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge |
| Current Rating (Amps) | 4.5A | 4.5A | 2.5A | 3.5A | 4.5A |
| Voltage Rating - AC | - | - | - | - | - |
| Voltage Rating - DC | 1.5 kV | 1.5 kV | 1.5 kV | 1.5 kV | 1.5 kV |
| Response Time | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow |
| Applications | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) |
| Features | - | - | - | - | - |
| Class | - | - | - | - | - |
| Approval Agency | CE, gPV, UL | CE, gPV, UL, UR | CE, gPV, UL | CE, gPV, UL | CE, gPV, UL |
| Operating Temperature | - | - | - | - | - |
| Breaking Capacity @ Rated Voltage | 50kA | 30kA | 50kA | 50kA | 50kA |
| Package / Case | Cartridge, Non-Standard | Cartridge, Inline, Double Ended | Cartridge, Non-Standard | Cartridge, Non-Standard | Cartridge, Non-Standard |
| Size / Dimension | 0.406" Dia x 3.333" L (10.31mm x 84.65mm) | 0.406" Dia x 4.333" L (10.30mm x 110.06mm) | 0.406" Dia x 3.333" L (10.30mm x 84.65mm) | 0.406" Dia x 3.333" L (10.30mm x 84.65mm) | 0.406" Dia x 3.333" L (10.31mm x 84.65mm) |
