Please send RFQ , we will respond immediately.

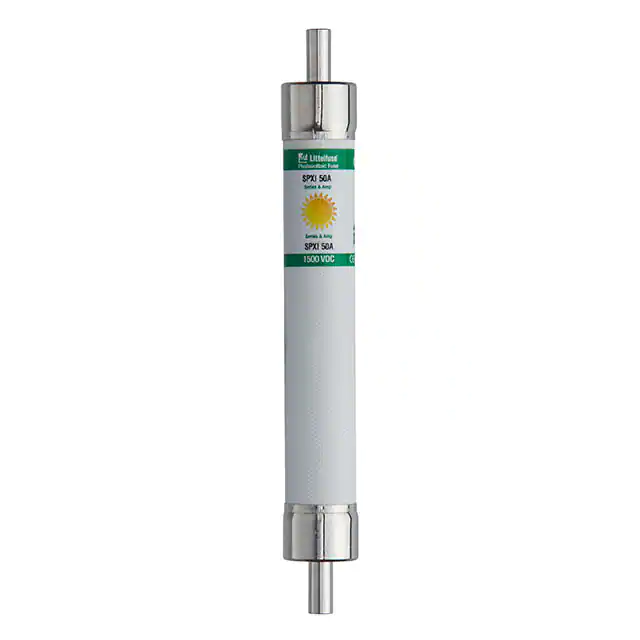

| Part Number | SPXV004.L | SPXV006.L | SPXV008.L | SPXV005.L | SPXV004.T | SPXI004.L | SPXV001.L | SPXV002.L | SPXV003.L |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Mounting Type | Holder | Holder | Holder | Holder | Holder | Free Hanging (In-Line) | Holder | Holder | Holder |
| Fuse Type | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge |
| Current Rating (Amps) | 4A | 6A | 8A | 5A | 4A | 4A | 1A | 2A | 3A |
| Voltage Rating - AC | - | - | - | - | - | - | - | - | - |
| Voltage Rating - DC | 1.5 kV | 1.5 kV | 1.5 kV | 1.5 kV | 1.5 kV | 1.5 kV | 1.5 kV | 1.5 kV | 1.5 kV |
| Response Time | Fast Blow | - | - | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow |
| Applications | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) |
| Features | - | - | - | - | - | - | - | - | - |
| Class | - | - | - | - | - | - | - | - | - |
| Approval Agency | CE, gPV, UL | CE, UR | CE, UR | CE, gPV, UL | CE, gPV, UL | CE, UR | CE, gPV, UL | CE, gPV, UL | CE, gPV, UL |
| Operating Temperature | - | - | - | - | - | - | - | - | - |
| Breaking Capacity @ Rated Voltage | 50kA | 15kA | 15kA | 50kA | 50kA | 30kA | 50kA | 50kA | 50kA |
| Package / Case | Cartridge, Non-Standard | Cartridge, Non-Standard | Cartridge, Non-Standard | Cartridge, Non-Standard | Cartridge, Non-Standard | Cartridge, Inline, Double Ended | Cartridge, Non-Standard | Cartridge, Non-Standard | Cartridge, Non-Standard |
| Size / Dimension | 0.406" Dia x 3.333" L (10.30mm x 84.65mm) | 0.406" Dia x 3.333" L (10.30mm x 84.65mm) | 0.406" Dia x 3.333" L (10.30mm x 84.65mm) | 0.406" Dia x 3.333" L (10.30mm x 84.65mm) | 0.406" Dia x 3.333" L (10.30mm x 84.65mm) | 0.406" Dia x 3.205" L (10.30mm x 81.41mm) | 0.406" Dia x 3.333" L (10.30mm x 84.65mm) | 0.406" Dia x 3.333" L (10.30mm x 84.65mm) | 0.406" Dia x 3.333" L (10.30mm x 84.65mm) |
