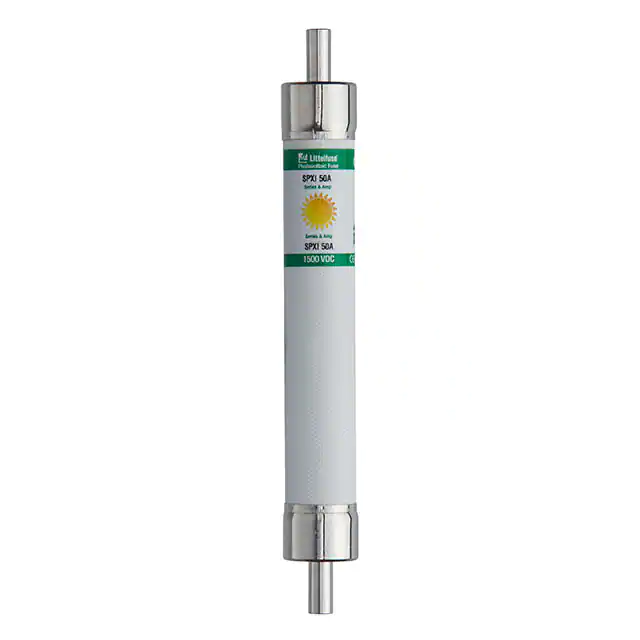

| Part Number | SPXI020.L | SPXV020.L | SPXI020.T | SPXI025.L | SPXI030.L | SPXI010.L |
|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Obsolete | Obsolete | Active |
| Mounting Type | Free Hanging (In-Line) | Holder | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Fuse Type | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge |
| Current Rating (Amps) | 20A | 20A | 20A | 25A | 30A | 10A |
| Voltage Rating - AC | - | - | - | - | - | - |
| Voltage Rating - DC | 1.5 kV | 1.5 kV | 1.5 kV | 1.5 kV | 1.5 kV | 1.5 kV |
| Response Time | - | - | - | - | - | - |
| Applications | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) |
| Features | Intrinsically Safe | - | Intrinsically Safe | Intrinsically Safe | Intrinsically Safe | Intrinsically Safe |
| Class | - | - | - | - | - | - |
| Approval Agency | - | CE, UR | - | - | - | - |
| Operating Temperature | - | - | - | - | - | - |
| Breaking Capacity @ Rated Voltage | 15kA | 15kA | 15kA | 15kA | 15kA | 15kA |
| Package / Case | Cartridge, Inline, Double Ended | Cartridge, Non-Standard | Cartridge, Inline, Double Ended | Cartridge, Inline, Double Ended | Cartridge, Inline, Double Ended | Cartridge, Inline, Double Ended |
| Size / Dimension | 0.406" Dia x 3.475" L (10.31mm x 88.27mm) | 0.406" Dia x 3.333" L (10.30mm x 84.65mm) | 0.406" Dia x 3.475" L (10.31mm x 88.27mm) | 0.540" Dia x 3.370" L (13.72mm x 85.54mm) | 0.540" Dia x 3.370" L (13.72mm x 85.54mm) | 0.406" Dia x 3.475" L (10.31mm x 88.27mm) |
