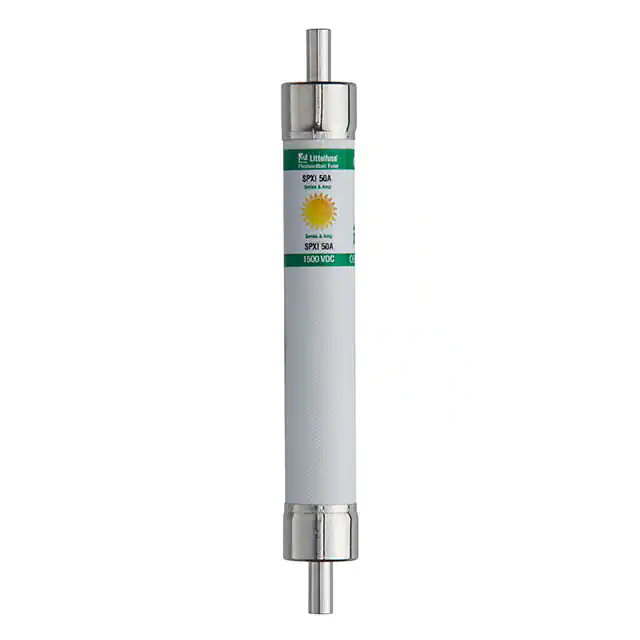

| Part Number | SPXI016.T | SPXV016.T | SPXI006.T | SPXI010.T | SPXI012.T | SPXI015.T | SPXI016.L |
|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Mounting Type | Free Hanging (In-Line) | Holder | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Fuse Type | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge |
| Current Rating (Amps) | 16A | 16A | 6A | 10A | 12A | 15A | 16A |
| Voltage Rating - AC | - | - | - | - | - | - | - |
| Voltage Rating - DC | 1.5 kV | 1.5 kV | 1.5 kV | 1.5 kV | 1.5 kV | 1.5 kV | 1.5 kV |
| Response Time | Fast Blow | Fast Blow | - | - | - | - | Fast Blow |
| Applications | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) |
| Features | - | - | Intrinsically Safe | Intrinsically Safe | Intrinsically Safe | Intrinsically Safe | - |
| Class | - | - | - | - | - | - | - |
| Approval Agency | CE, gPV, UR | CE, gPV, UL | - | - | - | - | CE, gPV, UR |
| Operating Temperature | - | - | - | - | - | - | - |
| Breaking Capacity @ Rated Voltage | 30kA | 50kA | 15kA | 15kA | 15kA | 15kA | 30kA |
| Package / Case | Cartridge, Inline, Double Ended | Cartridge, Non-Standard | Cartridge, Inline, Double Ended | Cartridge, Inline, Double Ended | Cartridge, Inline, Double Ended | Cartridge, Inline, Double Ended | Cartridge, Inline, Double Ended |
| Size / Dimension | 0.406" Dia x 4.333" L (10.31mm x 110.06mm) | 0.406" Dia x 3.333" L (10.31mm x 84.65mm) | 0.406" Dia x 3.475" L (10.31mm x 88.27mm) | 0.406" Dia x 3.475" L (10.31mm x 88.27mm) | 0.406" Dia x 3.475" L (10.31mm x 88.27mm) | 0.406" Dia x 3.475" L (10.31mm x 88.27mm) | 0.406" Dia x 4.333" L (10.31mm x 110.06mm) |
