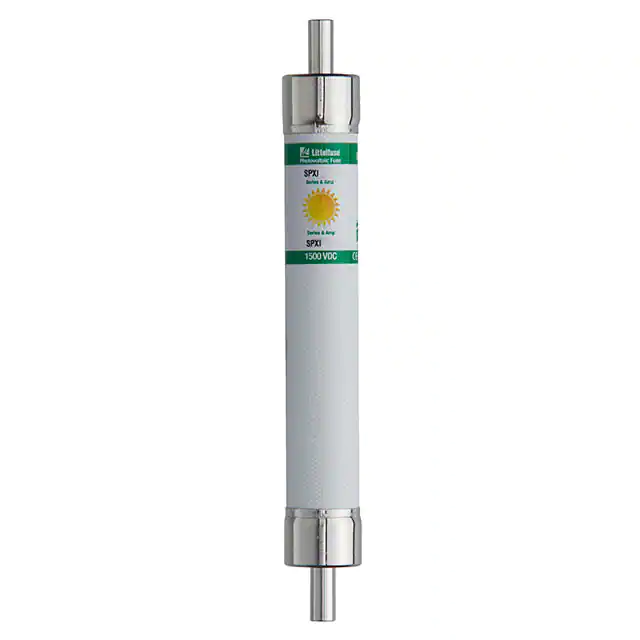

| Part Number | SPXI010.TXB | SPXI016.TXB | SPXI015.TXB | SPXI012.TXB | SPXI020.TXB | SPXI010.LXB |
|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Fuse Type | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge |
| Current Rating (Amps) | 10A | 16A | 15A | 12A | 20A | 10A |
| Voltage Rating - AC | - | - | - | - | - | - |
| Voltage Rating - DC | 1.5 kV | 1.5 kV | 1.5 kV | 1.5 kV | 1.5 kV | 1.5 kV |
| Response Time | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow |
| Applications | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) |
| Features | - | - | - | - | - | - |
| Class | - | - | - | - | - | - |
| Approval Agency | CE, gPV, UL, UR | CE, gPV, UR | CE, gPV, UL, UR | CE, gPV, UL, UR | CE, gPV, UL, UR | CE, gPV, UL, UR |
| Operating Temperature | - | - | - | - | - | - |
| Breaking Capacity @ Rated Voltage | 30kA | 30kA | 30kA | 30kA | 30kA | 30kA |
| Package / Case | Cartridge, Inline, Double Ended | Cartridge, Inline, Double Ended | Cartridge, Inline, Double Ended | Cartridge, Inline, Double Ended | Cartridge, Inline, Double Ended | Cartridge, Inline, Double Ended |
| Size / Dimension | 0.406" Dia x 4.490" L (10.31mm x 114.05mm) | 0.406" Dia x 4.490" L (10.31mm x 114.05mm) | 0.406" Dia x 4.490" L (10.31mm x 114.05mm) | 0.406" Dia x 4.490" L (10.31mm x 114.05mm) | 0.406" Dia x 4.490" L (10.31mm x 114.05mm) | 0.406" Dia x 4.333" L (10.31mm x 110.06mm) |
