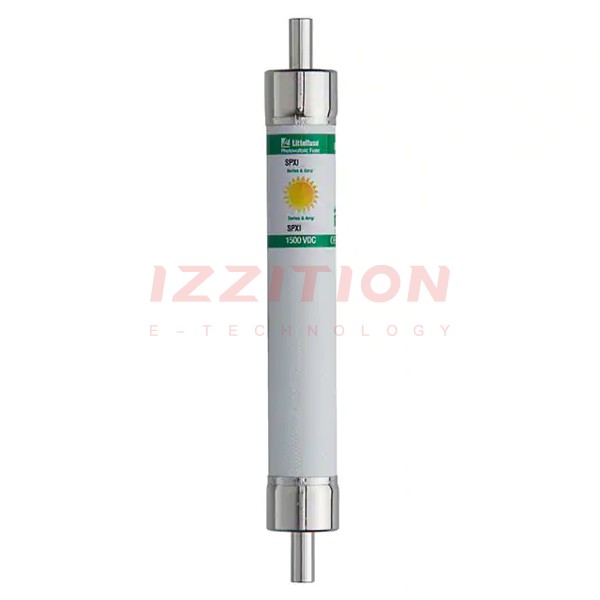

| Part Number | SPXI004.LXB | SPXI005.LXB | SPXI004.TXB | SPXI006.LXB | SPXI008.LXB | SPXI001.LXB | SPXI002.LXB | SPXI003.LXB |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Active | Active | Active |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Fuse Type | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge |
| Current Rating (Amps) | 4A | 5A | 4A | 6A | 8A | 1A | 2A | 3A |
| Voltage Rating - AC | - | - | - | - | - | - | - | - |
| Voltage Rating - DC | 1.5 kV | 1.5 kV | 1.5 kV | 1.5 kV | 1.5 kV | 1.5 kV | 1.5 kV | 1.5 kV |
| Response Time | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow |
| Applications | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) |
| Features | - | - | - | - | - | - | - | - |
| Class | - | - | - | - | - | - | - | - |
| Approval Agency | CE, gPV, UL, UR | CE, gPV, UL, UR | CE, gPV, UL, UR | CE, gPV, UL, UR | CE, gPV, UL, UR | CE, gPV, UR | CE, gPV, UR | CE, gPV, UR |
| Operating Temperature | - | - | - | - | - | - | - | - |
| Breaking Capacity @ Rated Voltage | 30kA | 30kA | 30kA | 30kA | 30kA | 30kA | 30kA | 30kA |
| Package / Case | Cartridge, Inline, Double Ended | Cartridge, Inline, Double Ended | Cartridge, Inline, Double Ended | Cartridge, Inline, Double Ended | Cartridge, Inline, Double Ended | Cartridge, Inline, Double Ended | Cartridge, Inline, Double Ended | Cartridge, Inline, Double Ended |
| Size / Dimension | 0.406" Dia x 3.362" L (10.31mm x 85.40mm) | 0.406" Dia x 4.333" L (10.31mm x 110.06mm) | 0.406" Dia x 3.362" L (10.31mm x 85.40mm) | 0.406" Dia x 4.333" L (10.31mm x 110.06mm) | 0.406" Dia x 4.333" L (10.31mm x 110.06mm) | 0.406" Dia x 3.362" L (10.31mm x 85.40mm) | 0.406" Dia x 3.362" L (10.31mm x 85.40mm) | 0.406" Dia x 3.362" L (10.31mm x 85.40mm) |
