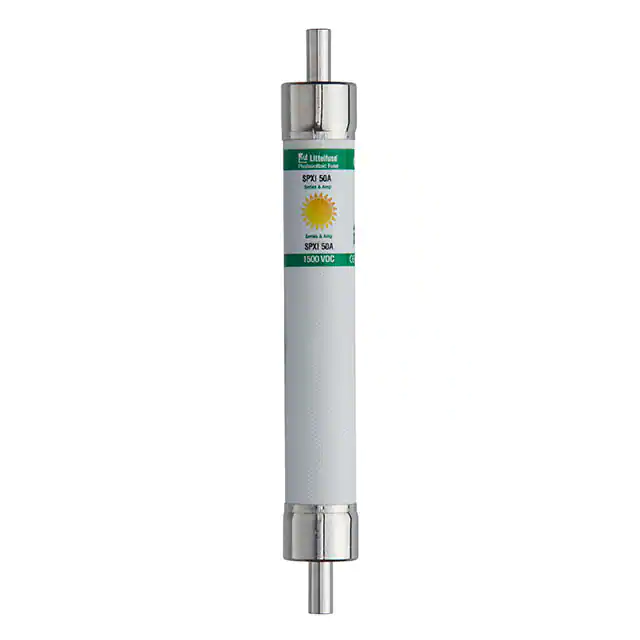

| Part Number | SPXI002.T | SPXV002.T | SPXI006.T | SPXI008.T | SPXI012.T | SPXI004.T | SPXI005.T | SPXI003.T | SPFI002.T | SPXI001.T | SPXI002.L |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Mounting Type | Free Hanging (In-Line) | Holder | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Holder | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Fuse Type | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge |
| Current Rating (Amps) | 2A | 2A | 6A | 8A | 12A | 4A | 5A | 3A | 2A | 1A | 2A |
| Voltage Rating - AC | - | - | - | - | - | - | - | - | - | - | - |
| Voltage Rating - DC | 1.5 kV | 1.5 kV | 1.5 kV | 1.5 kV | 1.5 kV | 1.5 kV | 1.5 kV | 1.5 kV | 1 kV | 1.5 kV | 1.5 kV |
| Response Time | Fast Blow | Fast Blow | - | - | - | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow |
| Applications | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) |
| Features | - | - | Intrinsically Safe | Intrinsically Safe | Intrinsically Safe | - | - | - | - | - | - |
| Class | - | - | - | - | - | - | - | - | - | - | - |
| Approval Agency | CE, gPV, UR | CE, gPV, UL | - | - | - | CE, UR | CE, gPV, UL, UR | CE, gPV, UR | CE, UR | CE, gPV, UL, UR | CE, gPV, UR |
| Operating Temperature | - | - | - | - | - | - | - | - | - | - | - |
| Breaking Capacity @ Rated Voltage | 30kA | 50kA | 15kA | 15kA | 15kA | 30kA | 30kA | 30kA | 20kA | 30kA | 30kA |
| Package / Case | Cartridge, Inline, Double Ended | Cartridge, Non-Standard | Cartridge, Inline, Double Ended | Cartridge, Inline, Double Ended | Cartridge, Inline, Double Ended | Cartridge, Inline, Double Ended | Cartridge, Inline, Double Ended | Cartridge, Inline, Double Ended | Cylindrical, Blade Terminals | Cartridge, Inline, Double Ended | Cartridge, Inline, Double Ended |
| Size / Dimension | 0.406" Dia x 3.205" L (10.31mm x 81.41mm) | 0.406" Dia x 3.333" L (10.30mm x 84.65mm) | 0.406" Dia x 3.475" L (10.31mm x 88.27mm) | 0.406" Dia x 3.475" L (10.31mm x 88.27mm) | 0.406" Dia x 3.475" L (10.31mm x 88.27mm) | 0.406" Dia x 3.205" L (10.30mm x 81.41mm) | 0.406" Dia x 4.333" L (10.30mm x 110.06mm) | 0.406" Dia x 3.205" L (10.31mm x 81.41mm) | 0.406" Dia x 2.500" L (10.31mm x 63.50mm) | 0.406" Dia x 3.205" L (10.31mm x 81.41mm) | 0.406" Dia x 3.205" L (10.31mm x 81.41mm) |
