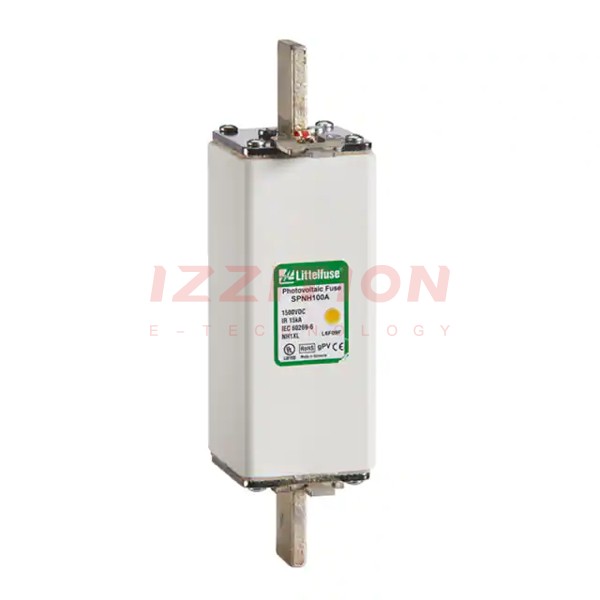

| Part Number | SPNH250.X2XLDL | SPNH200.X2XLDL | SPNH250.X2XLDE |
|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active |
| Mounting Type | Bolt Mount | Bolt Mount | Bolt Mount |
| Fuse Type | Rectangular | Rectangular | Rectangular |
| Current Rating (Amps) | 250A | 200A | 250A |
| Voltage Rating - AC | - | - | - |
| Voltage Rating - DC | 1.5 kV | 1.5 kV | 1.5 kV |
| Response Time | Fast Blow | Fast Blow | Fast Blow |
| Applications | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) |
| Features | - | - | - |
| Class | - | - | - |
| Approval Agency | CE, gPV, IEC, UL | CE, gPV, IEC, UL | CE, gPV, IEC, UL |
| Operating Temperature | - | - | - |
| Breaking Capacity @ Rated Voltage | 30kA | 30kA | 30kA |
| Package / Case | Rectangular, Blade | Rectangular, Blade | Rectangular, Blade |
| Size / Dimension | 5.165" L x 2.362" W x 2.362" H (131.20mm x 60.00mm x 60.00mm) | 5.165" L x 2.362" W x 2.362" H (131.20mm x 60.00mm x 60.00mm) | 5.165" L x 2.362" W x 2.362" H (131.20mm x 60.00mm x 60.00mm) |
