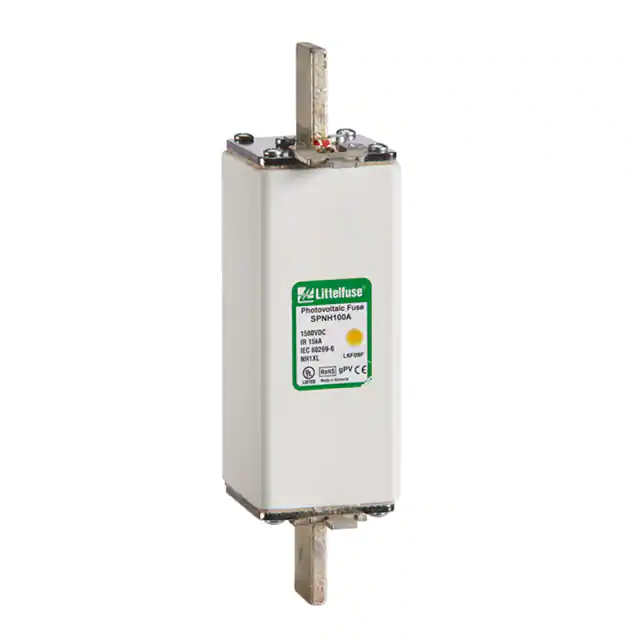

| Part Number | SPNH050.XXDLMS | SPNH080.XXDLMS | SPNH050.XXDEMS |
|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active |
| Mounting Type | Bolt Mount | Bolt Mount | Bolt Mount |
| Fuse Type | Rectangular | Rectangular | Rectangular |
| Current Rating (Amps) | 50A | 80A | 50A |
| Voltage Rating - AC | - | - | - |
| Voltage Rating - DC | 1.5 kV | 1.5 kV | 1.5 kV |
| Response Time | Fast Blow | Fast Blow | Fast Blow |
| Applications | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) |
| Features | - | - | - |
| Class | - | - | - |
| Approval Agency | CE, gPV, IEC, UL | CE, gPV, IEC, UL | CE, gPV, IEC, UL |
| Operating Temperature | - | - | - |
| Breaking Capacity @ Rated Voltage | 30kA | 30kA | 30kA |
| Package / Case | Rectangular, Blade | Rectangular, Blade | Rectangular, Blade |
| Size / Dimension | 5.165" L x 2.008" W x 2.008" H (131.20mm x 51.00mm x 51.00mm) | 5.165" L x 2.008" W x 2.008" H (131.20mm x 51.00mm x 51.00mm) | 5.165" L x 2.008" W x 2.008" H (131.20mm x 51.00mm x 51.00mm) |
