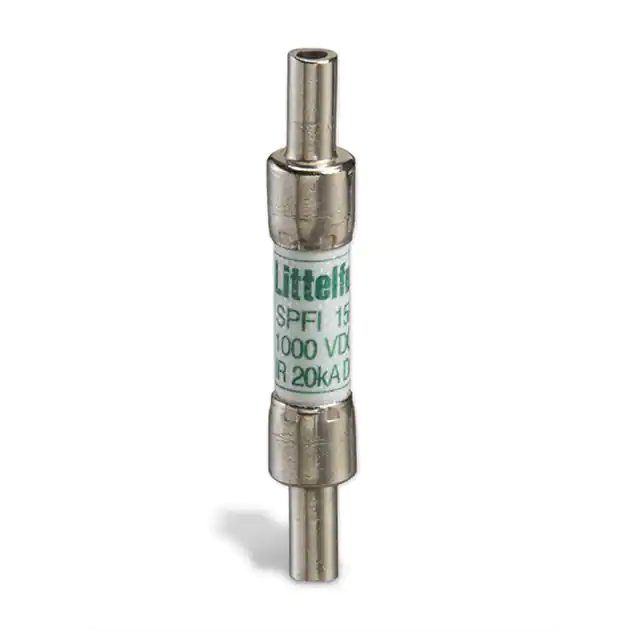

| Part Number | SPFI025.L | SPFI025.T | SPFI005.L | SPFI015.L | SPFI020.L |
|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Mounting Type | Holder | Holder | Holder | Holder | Holder |
| Fuse Type | Cartridge | Cartridge | Cartridge | Cartridge | Cartridge |
| Current Rating (Amps) | 25A | 25A | 5A | 15A | 20A |
| Voltage Rating - AC | - | - | - | - | - |
| Voltage Rating - DC | 1 kV | 1 kV | 1 kV | 1 kV | 1 kV |
| Response Time | Fast Blow | Fast Blow | Fast Blow | Fast Blow | Fast Blow |
| Applications | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) | Solar (Photovoltaic) |
| Features | - | - | - | - | - |
| Class | - | - | - | - | - |
| Approval Agency | CE, UR | CE, UR | CE, UR | CE, UR | CE, UR |
| Operating Temperature | - | - | - | - | - |
| Breaking Capacity @ Rated Voltage | 20kA | 20kA | 20kA | 20kA | 20kA |
| Package / Case | Cylindrical, Blade Terminals | Cylindrical, Blade Terminals | Cylindrical, Blade Terminals | Cylindrical, Blade Terminals | Cylindrical, Blade Terminals |
| Size / Dimension | 0.406" Dia x 2.500" L (10.31mm x 63.50mm) | 0.406" Dia x 2.500" L (10.31mm x 63.50mm) | 0.406" Dia x 2.500" L (10.31mm x 63.50mm) | 0.406" Dia x 2.500" L (10.31mm x 63.50mm) | 0.406" Dia x 2.500" L (10.31mm x 63.50mm) |
