Please send RFQ , we will respond immediately.

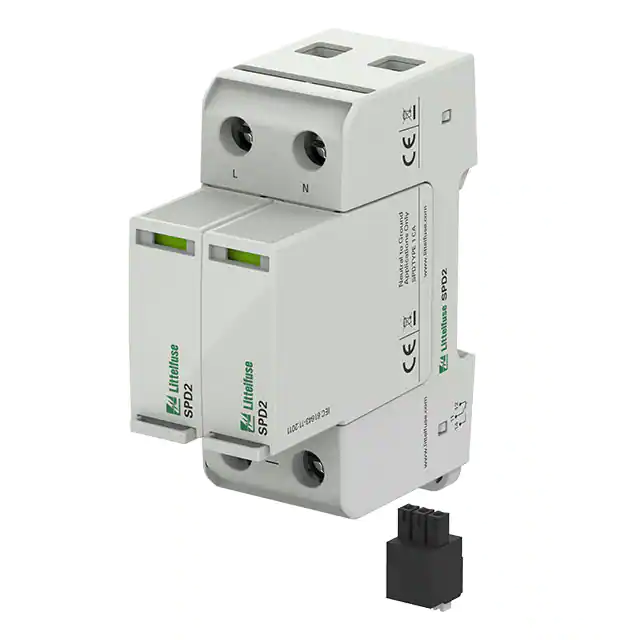

| Part Number | SPD2-075-1P1-R | SPD2-075-1P0-R |
|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active |
| Type | Type 1, Type 2 | Type 1, Type 2 |
| Form | Base + Module | Base + Module |
| Number of Poles | 2 | 1 |
| Voltage - Continuous Operating (Max) (MCOV) | 305VAC | 75VAC |
| Current - Discharge (Nom) (8/20µS) | 40 kA | 20 kA |
| Current - Discharge (Max) (8/20µS) | 65 kA | 50 kA |
| Current - Short Circuit Rating (SCRR) | 100 kA | 100 kA |
| Voltage - Protection Rating (VPR) | 1 kV | 330 V |
| Voltage - Protection Level (VP) (2416) | 1.5 kV | 800 V |
| Operating Temperature | -40°C ~ 80°C | -40°C ~ 80°C |
| Features | Remote Signaling Contacts, Thermally Protected | Remote Signaling Contacts, Thermally Protected |
| Mounting Type | DIN Rail | DIN Rail |
| Approval Agency | CE, cURus, UL, VDE | CE, cURus, UL, VDE |
