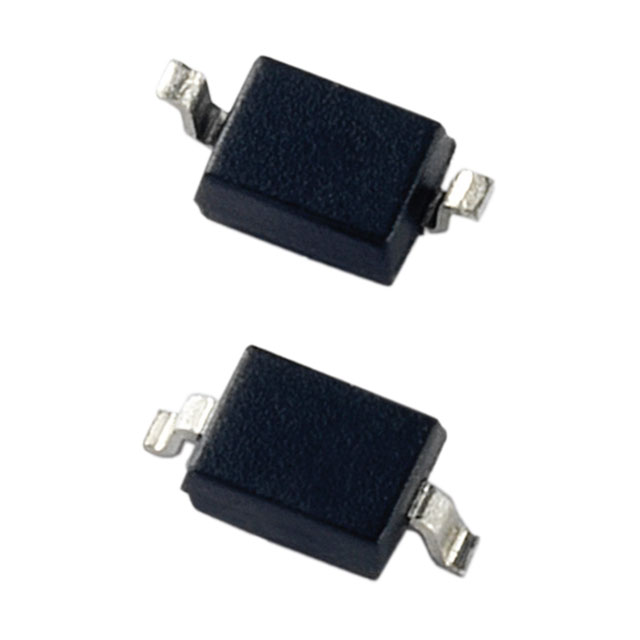

| Part Number | SP4024-01FTG | SP4020-01FTG | SP4021-01FTG | SP4022-01FTG | SP4023-01FTG |
|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Steering (Rail to Rail) | Steering (Rail to Rail) | Steering (Rail to Rail) | Steering (Rail to Rail) | Steering (Rail to Rail) |
| Unidirectional Channels | 1 | 1 | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 24V (Max) | 3.3V (Max) | 5V (Max) | 12V (Max) | 15V (Max) |
| Voltage - Breakdown (Min) | 26V | 3.5V | 6.3V | 13.3V | 16V |
| Voltage - Clamping (Max) @ Ipp | 50V | 21.8V (Typ) | 19.6V (Typ) | 35V | 40V |
| Current - Peak Pulse (10/1000µs) | 7A (8/20µs) | 30A (8/20µs) | 24A (8/20µs) | 15A (8/20µs) | 12A (8/20µs) |
| Power - Peak Pulse | 350W | 750W | 600W | 500W | 450W |
| Power Line Protection | No | No | No | No | No |
| Applications | Automotive | Ethernet | Ethernet | Automotive | Automotive |
| Capacitance @ Frequency | 1.3pF @ 1MHz | 2.5pF @ 1MHz | 2.5pF @ 1MHz | 1.3pF @ 1MHz | 1.3pF @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-76, SOD-323 | SC-76, SOD-323 | SC-76, SOD-323 | SC-76, SOD-323 | SC-76, SOD-323 |
| Supplier Device Package | SOD-323 | SOD-323 | SOD-323 | SOD-323 | SOD-323 |
