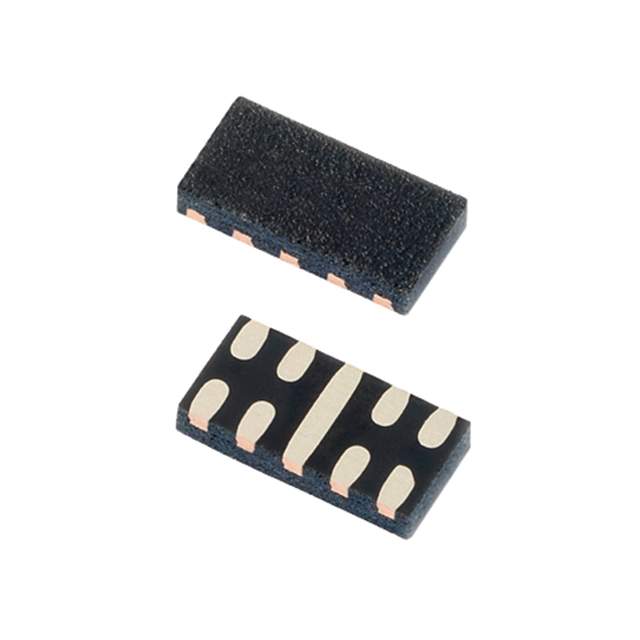

| Part Number | SP3010-04UTG | SP3012-04UTG | SP1010-04UTG |
|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Obsolete | Obsolete |
| Type | Steering (Rail to Rail) | Steering (Rail to Rail) | Zener |
| Unidirectional Channels | 4 | 4 | 4 |
| Bidirectional Channels | - | - | - |
| Voltage - Reverse Standoff (Typ) | 6V (Max) | 5V (Max) | 6V (Max) |
| Voltage - Breakdown (Min) | - | - | 7V |
| Voltage - Clamping (Max) @ Ipp | 12.3V (Typ) | 7V (Typ) | - |
| Current - Peak Pulse (10/1000µs) | 3A (8/20µs) | 4A (8/20µs) | - |
| Power - Peak Pulse | - | - | - |
| Power Line Protection | Yes | Yes | No |
| Applications | General Purpose | Automotive | General Purpose |
| Capacitance @ Frequency | - | 0.5pF @ 1MHz | - |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 10-UFDFN | 10-UFDFN | 6-XDFN |
| Supplier Device Package | 10-µDFN (2.5x1.0) | 10-µDFN (2.5x1.0) | 6-µDFN (1.25x1.0) |
