| Part Number | SP3002-04UTG | SP3012-04UTG | SP3002-04HTG | SP3002-04JTG |
|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Active |
| Type | Steering (Rail to Rail) | Steering (Rail to Rail) | Steering (Rail to Rail) | Steering (Rail to Rail) |
| Unidirectional Channels | 4 | 4 | 4 | 4 |
| Bidirectional Channels | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 6V (Max) | 5V (Max) | 6V (Max) | 6V (Max) |
| Voltage - Breakdown (Min) | - | - | - | - |
| Voltage - Clamping (Max) @ Ipp | 13V | 7V (Typ) | 13V | 13V |
| Current - Peak Pulse (10/1000µs) | 4.5A (8/20µs) | 4A (8/20µs) | 4.5A (8/20µs) | 4.5A (8/20µs) |
| Power - Peak Pulse | - | - | - | - |
| Power Line Protection | Yes | Yes | Yes | Yes |
| Applications | General Purpose | Automotive | General Purpose | General Purpose |
| Capacitance @ Frequency | - | 0.5pF @ 1MHz | - | - |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

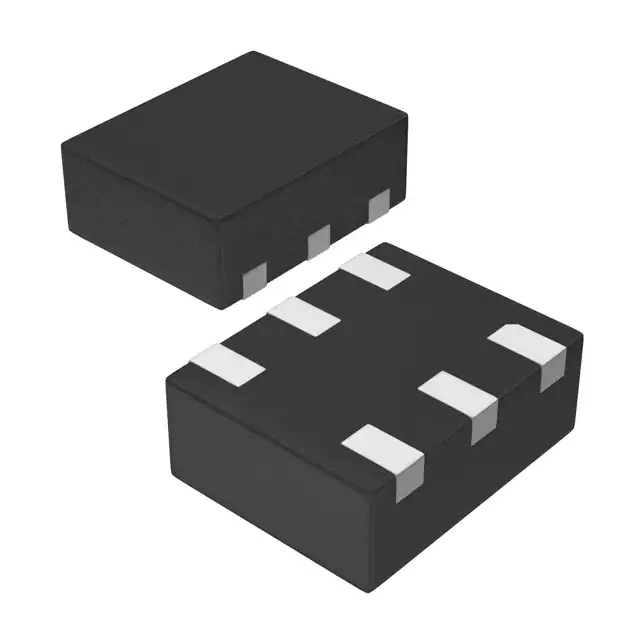

| Package / Case | 6-XDFN | 10-UFDFN | SOT-23-6 | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | 6-µDFN (1.6x1.6) | 10-µDFN (2.5x1.0) | SOT-23-6 | SC-70-6 |
