SP24-01WTG-C-HV
  • Share:

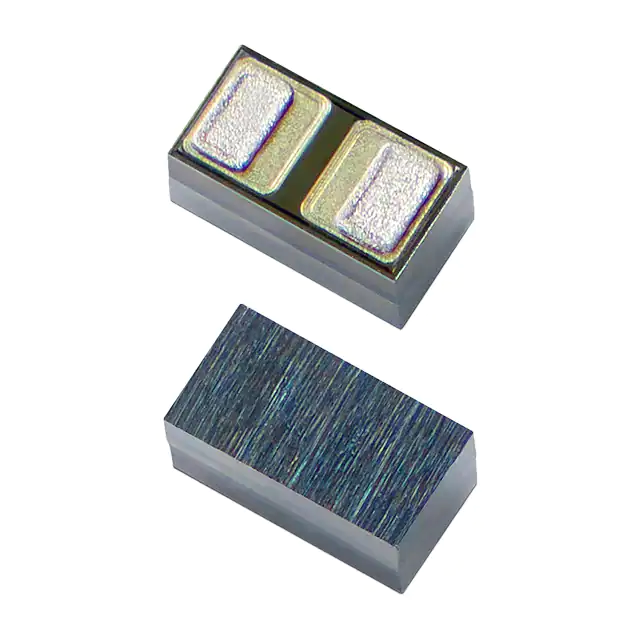

Littelfuse Inc. SP24-01WTG-C-HV

Manufacturer No:
SP24-01WTG-C-HV
Manufacturer:
Littelfuse Inc.
Package:
Tape & Reel (TR)
Datasheet:
SP24-01WTG-C-HV Datasheet
ECAD Model:
-
Description:
TVS DIODE 24VWM 40VC 2FLIPCHIP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Zener
Unidirectional Channels:-
Bidirectional Channels:1
Voltage - Reverse Standoff (Typ):24V (Max)
Voltage - Breakdown (Min):26.7V
Voltage - Clamping (Max) @ Ipp:40V
Current - Peak Pulse (10/1000µs):3A (8/20µs)
Power - Peak Pulse:100W
Power Line Protection:No
Applications:General Purpose
Capacitance @ Frequency:13pF @ 1MHz
Operating Temperature:-40°C ~ 125°C (TJ)
Mounting Type:Surface Mount
Package / Case:2-XFDFN, FCDFN
Supplier Device Package:2-FlipChip
0 Remaining View Similar

In Stock

$0.34
772

Please send RFQ , we will respond immediately.
