Please send RFQ , we will respond immediately.

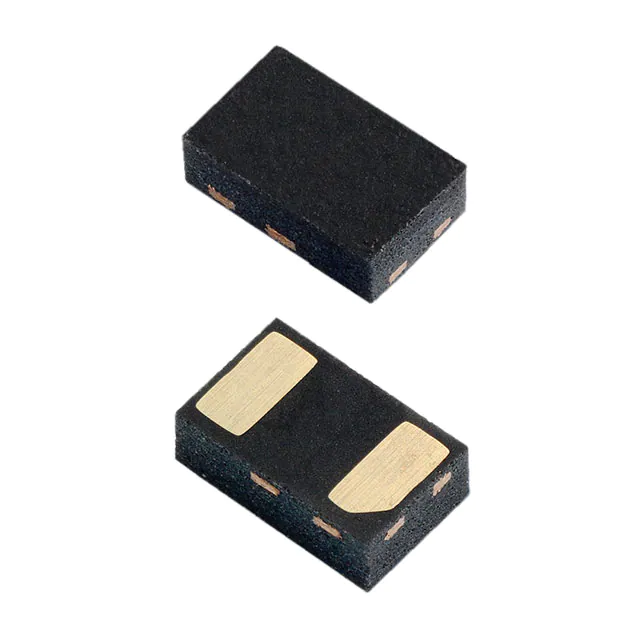

| Part Number | SP1115-01UTG | SP1105-01UTG | SP1112-01UTG |
|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active |
| Type | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - |
| Voltage - Reverse Standoff (Typ) | 15V (Max) | 5V (Max) | 12V (Max) |
| Voltage - Breakdown (Min) | - | - | - |
| Voltage - Clamping (Max) @ Ipp | 30.2V (Typ) | 10.9V (Typ) | 26.5V (Typ) |
| Current - Peak Pulse (10/1000µs) | 30A (8/20µs) | 70A (8/20µs) | 40A (8/20µs) |
| Power - Peak Pulse | - | - | - |
| Power Line Protection | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | 180pF @ 1MHz | 630pF @ 1MHz | 230pF @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0603 (1610 Metric) | 0603 (1610 Metric) | 0603 (1610 Metric) |
| Supplier Device Package | 2-DFN (1.6x1) | 2-DFN (1.6x1) | 2-DFN (1.6x1) |
