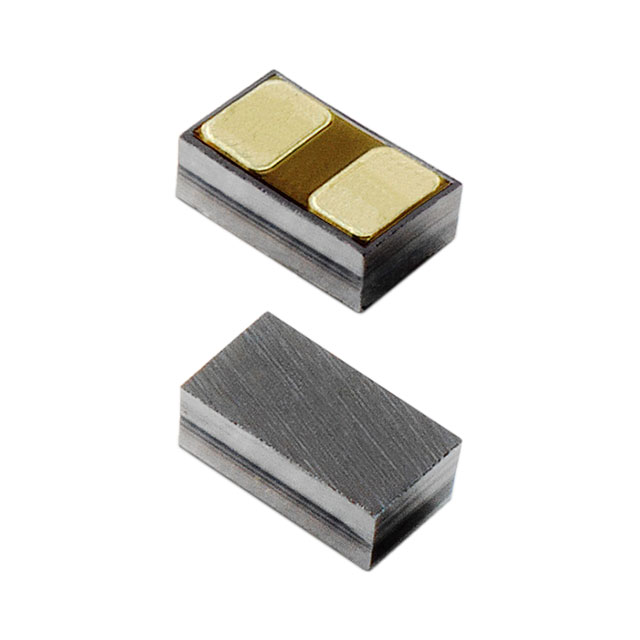

| Part Number | SP1014-01WTG | SP1044-01WTG | SP1013-01WTG |
|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | Zener | Zener | Zener |
| Unidirectional Channels | - | 1 | - |
| Bidirectional Channels | 1 | - | 1 |
| Voltage - Reverse Standoff (Typ) | 5V (Max) | 6V (Max) | 5V (Max) |
| Voltage - Breakdown (Min) | 7V | - | 7V |
| Voltage - Clamping (Max) @ Ipp | 11V | 9.3V (Typ) | 9.5V |
| Current - Peak Pulse (10/1000µs) | 2A (8/20µs) | 3A (8/20µs) | 2A (8/20µs) |
| Power - Peak Pulse | - | - | - |
| Power Line Protection | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | 6pF @ 1MHz | - | 30pF @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0201 (0603 Metric) | 01005 (0402 Metric) | 0201 (0603 Metric) |
| Supplier Device Package | 2-FlipChip | 01005, Flip Chip | 2-FlipChip |
