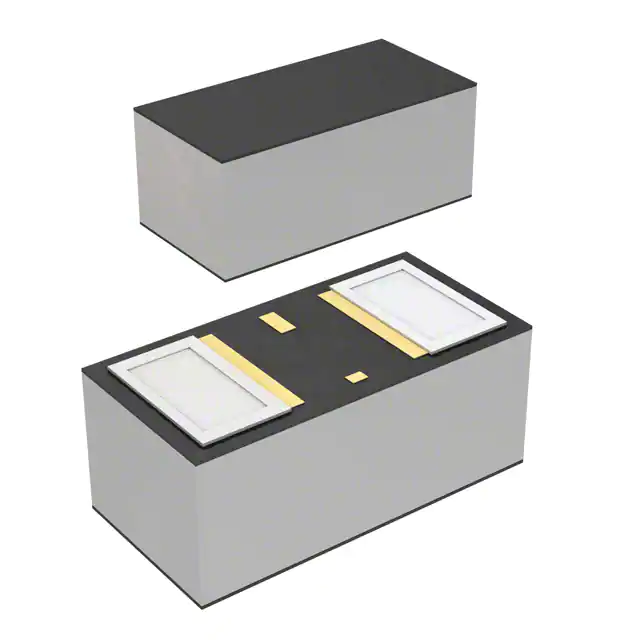

| Part Number | SP1007-01WTG | SP1008-01WTG | SP1009-01WTG | SP1005-01WTG | SP1007-01ETG |
|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Active | Obsolete | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | - | - |
| Bidirectional Channels | 1 | 1 | 1 | 1 | 1 |
| Voltage - Reverse Standoff (Typ) | 6V (Max) | 6V (Max) | 6V | 6V (Max) | 6V (Max) |
| Voltage - Breakdown (Min) | 7.8V (Typ) | 7V (Typ) | 7V | 8.5V (Typ) | 7.8V (Typ) |
| Voltage - Clamping (Max) @ Ipp | 9.2V | 12V | 15.6V (Typ) | 15.6V | 9.2V |
| Current - Peak Pulse (10/1000µs) | 5A (8/20µs) | 2A (8/20µs) | 10A (8/20µs) | 10A (8/20µs) | 5A (8/20µs) |
| Power - Peak Pulse | - | - | - | - | - |
| Power Line Protection | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | 30pF @ 1MHz | - | - |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | SOD-882 |
| Supplier Device Package | 0201 FlipChip | 0201 FlipChip | 0201/DFN0603 | 0201 FlipChip | SOD-882 |
