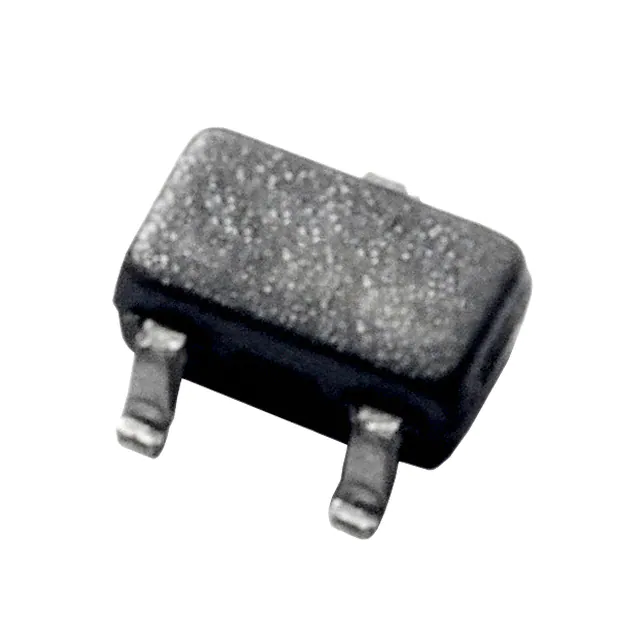

| Part Number | SP0502BAJT | SP0502BAJTG | SP0505BAJT | SP0504BAJT | SP0502BAHT |
|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete |
| Type | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 2 | 2 | 5 | 4 | 2 |
| Bidirectional Channels | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 5.5V (Max) | 5.5V (Max) | 5.5V (Max) | 5.5V (Max) | 5.5V (Max) |
| Voltage - Breakdown (Min) | - | - | - | - | - |
| Voltage - Clamping (Max) @ Ipp | 8.5V | 8.5V | 8.5V | 8.5V | 8.5V |
| Current - Peak Pulse (10/1000µs) | - | - | - | - | - |
| Power - Peak Pulse | - | - | - | - | - |
| Power Line Protection | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-70, SOT-323 | SC-70, SOT-323 | 6-TSSOP, SC-88, SOT-363 | 5-TSSOP, SC-70-5, SOT-353 | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SC-70-3 | SC-70-3 | SC-70-6 | SC-70-5 | SOT-23-3 |
