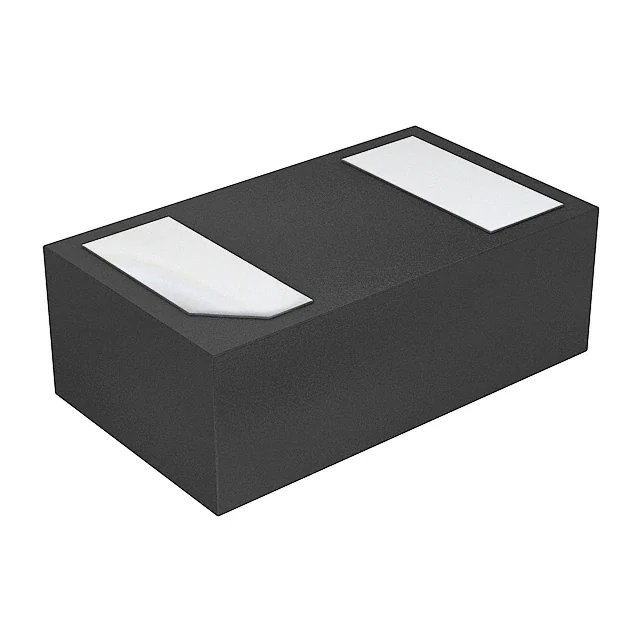

| Part Number | SP0402U-ULC-02ETG | SP0402U-ELC-02ETG | SP0402U-ULC-01ETG |
|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active |
| Type | Zener | Zener | Zener |
| Unidirectional Channels | 2 | 2 | 1 |
| Bidirectional Channels | - | - | - |
| Voltage - Reverse Standoff (Typ) | 5V | 7V | 5V |
| Voltage - Breakdown (Min) | 9V (Typ) | 8.8V (Typ) | 9V (Typ) |
| Voltage - Clamping (Max) @ Ipp | 9.2V (Typ) | 13V (Typ) | 9.2V |
| Current - Peak Pulse (10/1000µs) | 2A (8/20µs) | 2.2A (8/20µs) | 2A (8/20µs) |
| Power - Peak Pulse | - | - | - |
| Power Line Protection | No | No | No |
| Applications | Automotive | General Purpose | General Purpose |
| Capacitance @ Frequency | 0.2pF @ 1MHz | 0.3pF @ 1MHz | 0.2pF @ 1MHz |
| Operating Temperature | -40°C ~ 125°C | -30°C ~ 85°C (TA) | -30°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0402 (1006 Metric) | 0402 (1006 Metric) | 0402 (1006 Metric) |
| Supplier Device Package | 0402/2DFN (1x0.60) | 0402/2DFN (1x0.60) | 0402/2DFN (1x0.60) |
