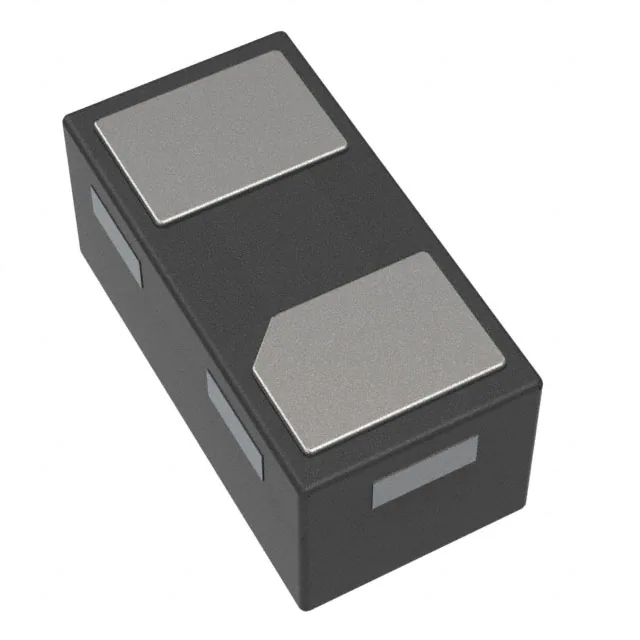

| Part Number | SP0201U-ELC-01UTG | SP0201U-ULC-01UTG | SP0201B-ELC-01UTG |
|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Product Status | Active | Active | Active |
| Type | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | - |
| Bidirectional Channels | - | - | 1 |
| Voltage - Reverse Standoff (Typ) | 7V (Max) | 7V (Max) | 7V (Max) |
| Voltage - Breakdown (Min) | 8.8V (Typ) | 8.8V (Typ) | 8.8V (Typ) |
| Voltage - Clamping (Max) @ Ipp | 13V (Typ) | 13V (Typ) | 13V (Typ) |
| Current - Peak Pulse (10/1000µs) | 2.5A (8/20µs) | 2.5A (8/20µs) | 2.5A (8/20µs) |
| Power - Peak Pulse | - | - | - |
| Power Line Protection | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | 0.3pF @ 3GHz | 0.3pF @ 3GHz | 0.3pF @ 3GHz |
| Operating Temperature | -30°C ~ 85°C (TA) | -30°C ~ 85°C (TA) | -30°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) |
| Supplier Device Package | 0201 | 0201 | 0201 |
