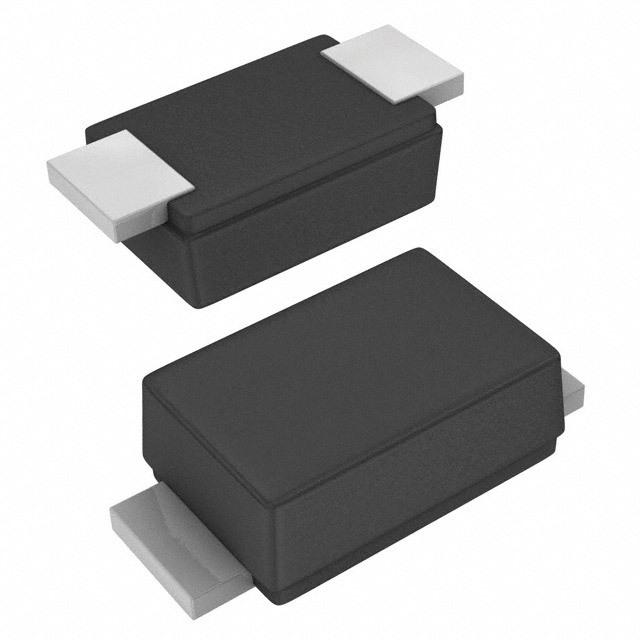

| Part Number | SMF75CA | SMF85CA | SMF78CA | SMF7.5CA | SMF70CA | SMF75A |
|---|---|---|---|---|---|---|
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Meritek | MDD | Meritek | Meritek |
| Product Status | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | - | - | 1 |
| Bidirectional Channels | 1 | 1 | 1 | - | 1 | - |
| Voltage - Reverse Standoff (Typ) | 75V | 85V | 78V | 7.5V | 70V | 75V |
| Voltage - Breakdown (Min) | 83.3V | 94.4V | 86.7V | 8.33V | 77.8V | 83.3V |
| Voltage - Clamping (Max) @ Ipp | 121V | 137V | 126V | 12.9V | 113V | 121V |
| Current - Peak Pulse (10/1000µs) | 1.4A | 1.3A | 1.59A | 15.5A | 1.77A | 1.65A |
| Power - Peak Pulse | 200W | 200W | 200W | 200W | 200W | 200W |
| Power Line Protection | No | No | - | No | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | - | - | - | - | - | - |
| Operating Temperature | -65°C ~ 150°C (TJ) | -65°C ~ 150°C (TJ) | -55°C ~ 150°C | -55°C ~ 150°C (TJ) | -55°C ~ 150°C | -55°C ~ 150°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOD-123F | SOD-123F | SOD-123FL | SOD-123F, SMF | SOD-123FL | SOD-123FL |
| Supplier Device Package | SOD-123F | SOD-123F | - | SMF/SOD-123FL | - | - |
